Toshiba Semiconductor and Storage TC74AC541F(EL,F)
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.44 | $1.44 |
| 15+ | $1.40 | $21.00 |
| 25+ | $1.37 | $34.25 |
| 50+ | $1.29 | $64.50 |
| 100+ | $1.14 | $114.00 |
| N+ | $0.23 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Toshiba Semiconductor and Storage |
| Product Series | 74AC |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Part Status | Active |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 1 |
| Number of Bits per Element | 8 |
| Input Type | - |
| Output Type | 3-State |
| Current - Output High, Low | 24mA, 24mA |
| Voltage - Supply | 2V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

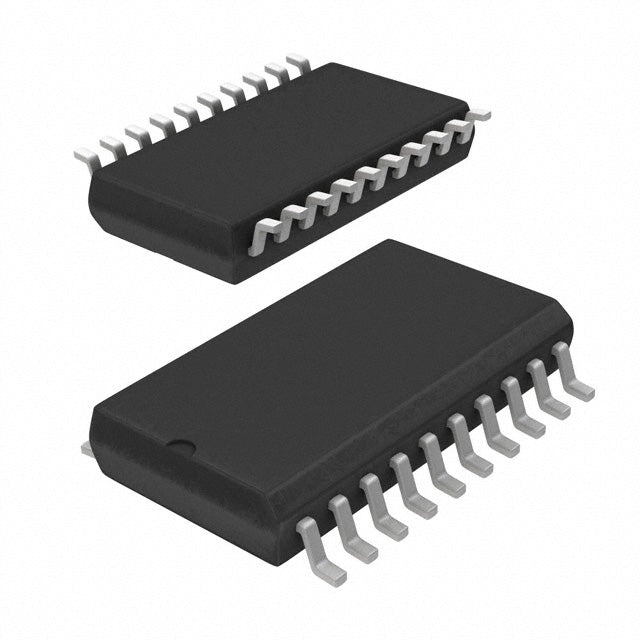

| Package / Case | 20-SOIC (0.209", 5.30mm Width) |
| Supplier Device Package | 20-SOP |
The TC74AC541F is a high-speed non-inverting buffer from Toshiba, part of the 74AC logic family. It operates over a wide 2V to 5.5V supply range, providing excellent flexibility. Each channel can source or sink 24mA, making it capable of driving demanding loads. The 3-State outputs enable bus-oriented applications. It is available in a 20-SOIC package. This buffer is well-suited for high-speed signal buffering, memory driving, and level-shifting applications in various digital systems.
- High Output Current (24mA): Can drive heavy loads and long traces, improving signal integrity.
- Wide 2V to 5.5V Supply Range: Ensures compatibility with both 3.3V and 5V systems, simplifying design.
- High-Speed 74AC Family: Provides fast propagation delays, suitable for high-frequency applications.
- 3-State Outputs: Allows for direct connection to shared data buses, preventing signal contention.
High-Speed Bus Buffering
The 74AC family's high speed and 24mA drive capability make this buffer ideal for high-frequency bus applications, ensuring minimal signal delay.
Memory Address Driving
With its strong output current, it can drive the high capacitive loads of memory address lines, ensuring reliable operation in computing systems.
Level Shifting in Mixed-Voltage Systems
Its 2V to 5.5V range allows it to interface between 3.3V and 5V components, acting as a simple level shifter.
Peripheral Interface Buffering
It can buffer signals between a microcontroller and peripherals like displays or sensors, providing clean, strong signals over longer traces.
Test and Measurement Signal Routing
The 3-State outputs and high drive current make it suitable for routing test signals in automated test equipment.
Consumer Electronics Logic
In consumer devices, this buffer can condition and drive control signals, ensuring robust operation in TVs, set-top boxes, and gaming consoles.
- Q: What is the logic family of the TC74AC541F?
- A: It belongs to the 74AC logic family, which offers high-speed CMOS performance.
- Q: What is the function of this IC?
- A: It is a Buffer with Non-Inverting function, featuring 1 channel.
- Q: What type of output does it have?
- A: It features 3-State outputs, allowing for connection to shared buses.
- Q: What is the operating voltage range?
- A: It operates from 2V to 5.5V, making it versatile for various logic levels.
- Q: What is the output current capability?
- A: It can source and sink 24mA of current, providing strong drive capability.
- Q: What package is available?
- A: It comes in a 20-SOIC package with a 5.30mm width.
TC74AC541F(EL,F).pdf
- Q: What is the logic family of the TC74AC541F?
- A: It belongs to the 74AC logic family, which offers high-speed CMOS performance.
- Q: What is the function of this IC?
- A: It is a Buffer with Non-Inverting function, featuring 1 channel.
- Q: What type of output does it have?
- A: It features 3-State outputs, allowing for connection to shared buses.
- Q: What is the operating voltage range?
- A: It operates from 2V to 5.5V, making it versatile for various logic levels.
- Q: What is the output current capability?
- A: It can source and sink 24mA of current, providing strong drive capability.
- Q: What package is available?
- A: It comes in a 20-SOIC package with a 5.30mm width.
