NXP USA Inc. TDA8706AM/C3,518
Regular price
Dhs. 16.03
Regular price
Dhs. 16.86
Sale price
Dhs. 16.03
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 16.03 | Dhs. 16.03 |
| 15+ | Dhs. 15.51 | Dhs. 232.65 |
| 25+ | Dhs. 15.17 | Dhs. 379.25 |
| 50+ | Dhs. 14.33 | Dhs. 716.50 |
| 100+ | Dhs. 12.65 | Dhs. 1,265.00 |
| N+ | Dhs. 2.53 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
NXP TDA8706AM/C3,518 - High-Performance RGB Video Analog-to-Digital Converter
The TDA8706AM/C3,518 from NXP USA Inc. is a precision triple-channel 6-bit RGB video analog-to-digital converter designed for professional video processing applications. With a 40 megasample-per-second sampling rate, this ADC delivers reliable performance for demanding video signal conversion requirements.
Key Features & Benefits
- Triple-Channel Architecture: Simultaneous conversion of RGB video signals with 3 independent channels
- High-Speed Sampling: 40MSPS sampling rate ensures accurate capture of fast-changing video signals
- 6-Bit Resolution: Provides 64 discrete levels per channel for quality video digitization
- Wide Operating Range: Functions reliably from -40°C to 85°C for industrial and commercial applications
- Flexible Power Supply: Operates on 2.7V to 3.6V analog and digital supply voltages

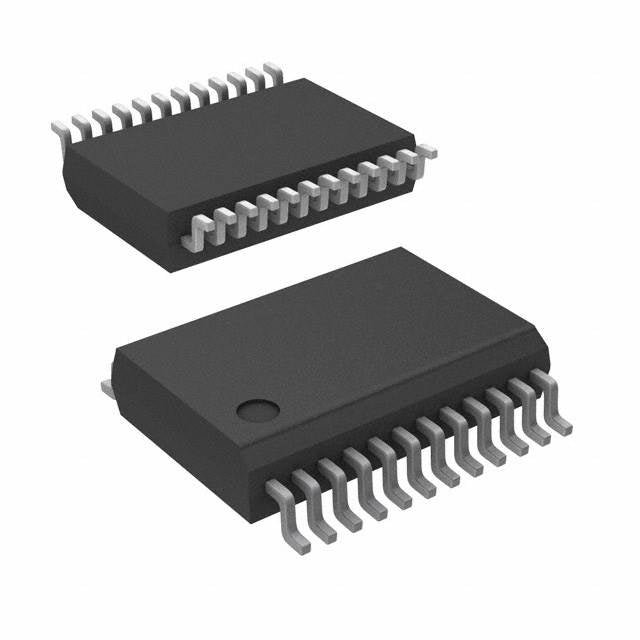

- Surface Mount Design: Compact 24-SSOP package (5.30mm width) for space-efficient PCB layouts
Applications
Ideal for video capture systems, display controllers, video surveillance equipment, broadcast equipment, and professional video processing solutions requiring reliable RGB signal conversion.
Quality & Reliability
As an authorized distributor of NXP semiconductors, we provide genuine components with full traceability and long lifecycle support. Each unit is supplied in tape and reel packaging for automated assembly processes.
| Product attributes | Property Value |
| Manufacturer | NXP USA Inc. |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Type | ADC, Video RGB |
| Number of Channels | 3 |
| Resolution (Bits) | 6 b |
| Sampling Rate (Per Second) | 40M |
| Data Interface | - |
| Voltage Supply Source | Analog and Digital |
| Voltage - Supply | 2.7V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 24-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 24-SSOP |
TDA8706AM/C3,518.pdf
×
