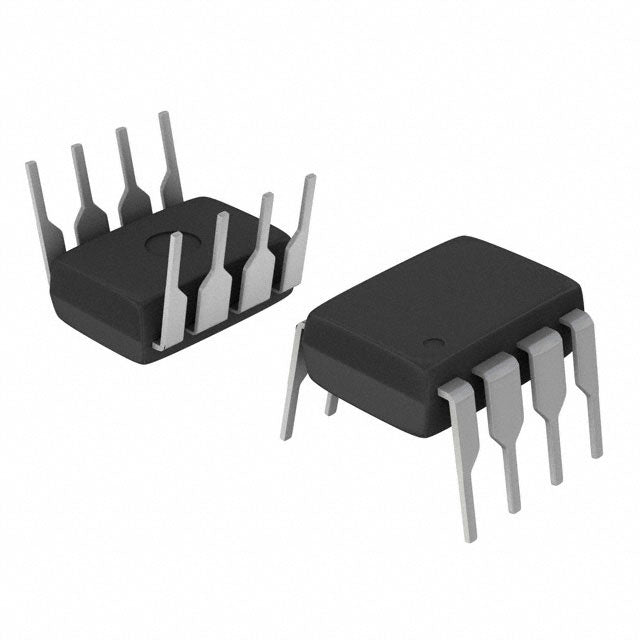

NXP TEA1506P/N1,112 - GreenChip™ II Flyback Controller
The TEA1506P/N1,112 is a high-performance offline flyback controller from NXP's GreenChip™ II series, designed for isolated AC/DC power supply applications up to 150W. This advanced controller IC features comprehensive protection mechanisms and wide operating voltage range, making it ideal for reliable power conversion in industrial, consumer, and telecommunications equipment.
Key Features & Benefits
- High Power Capability: Supports up to 150W output power for demanding applications
- Wide Switching Frequency Range: 25kHz to 175kHz for design flexibility and EMI optimization
- Robust Protection: Integrated current limiting, over-power, over-temperature, over-voltage, and short circuit protection
- High Voltage Rating: 650V breakdown voltage for enhanced reliability
- Flexible Supply Range: Operates from 8.7V to 20V with 11V start-up voltage
- Isolated Topology: Flyback configuration for safe, isolated power conversion
- Wide Temperature Range: -20°C to 145°C junction temperature for harsh environments
- Easy Integration: Standard 8-DIP through-hole package for simple PCB assembly
Typical Applications
- AC/DC adapters and chargers
- Auxiliary power supplies
- LED lighting drivers
- Industrial control systems
- Telecommunications equipment
- Consumer electronics power supplies
Why Choose TEA1506P/N1,112?
The NXP GreenChip™ II series represents proven technology for efficient, reliable power conversion. With comprehensive fault protection, wide operating ranges, and a standard through-hole package, the TEA1506P/N1,112 simplifies design while ensuring long-term reliability. Backed by NXP's semiconductor expertise and full technical documentation, this controller is the smart choice for your next power supply design.
Part Number: TEA1506P/N1,112
Manufacturer: NXP USA Inc.
Package: 8-DIP Through Hole
RoHS Compliant: Yes
| Product attributes | Property Value |
| Manufacturer | NXP USA Inc. |
| Product Series | GreenChip™ II |
| Packaging | | |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | 650V |
| Topology | Flyback |
| Voltage - Start Up | 11 V |
| Voltage - Supply (Vcc/Vdd) | 8.7V ~ 20V |
| Duty Cycle | - |
| Frequency - Switching | 25kHz ~ 175kHz |
| Power (Watts) | 150 W |
| Fault Protection | Current Limiting, Over Power, Over Temperature, Over Voltage, Short Circuit |
| Control Features | - |
| Operating Temperature | -20°C ~ 145°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-DIP |
