NXP USA Inc. TEA1506T/N1,118
Regular price
Dhs. 2.51
Regular price
Dhs. 2.62
Sale price
Dhs. 2.51
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 2.51 | Dhs. 2.51 |
| 15+ | Dhs. 2.41 | Dhs. 36.15 |
| 25+ | Dhs. 2.36 | Dhs. 59.00 |
| 50+ | Dhs. 2.23 | Dhs. 111.50 |
| 100+ | Dhs. 1.97 | Dhs. 197.00 |
| N+ | Dhs. 0.39 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry

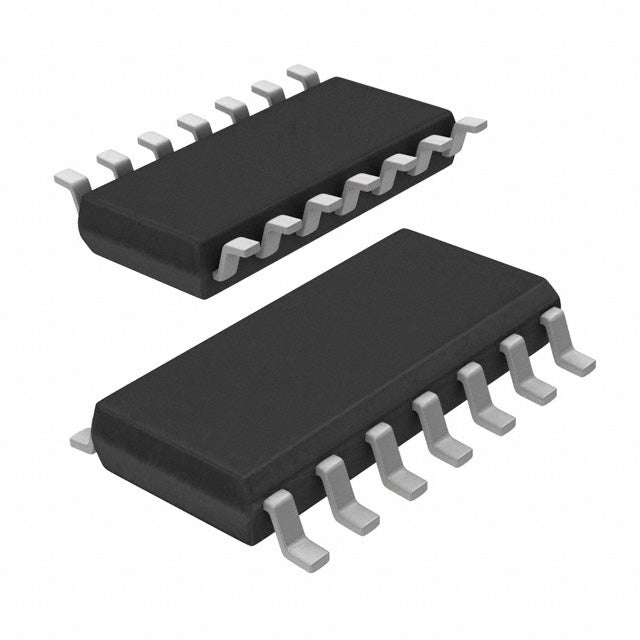

NXP TEA1506T/N1,118 - GreenChip™ II Flyback Controller IC
The TEA1506T/N1,118 is a high-performance offline flyback controller from NXP's GreenChip™ II series, designed for isolated AC/DC power supplies up to 150W. This surface-mount IC features comprehensive fault protection including current limiting, over-power, over-temperature, over-voltage, and short-circuit protection, making it ideal for industrial, telecom, and high-reliability applications.
Key Features
- 150W power handling with 650V breakdown voltage
- Wide switching frequency range: 25kHz to 175kHz
- Comprehensive fault protection for enhanced reliability
- Operating temperature: -20°C to 145°C (TJ)
- Surface mount 14-SOIC package for automated assembly
- Supply voltage: 8.7V to 20V with 11V start-up
Applications
- Industrial power supplies
- Telecom and networking equipment
- Medical device power systems
- Automotive electronics
- High-reliability embedded systems
Quality Assurance: As an authorized distributor, we provide full traceability documentation, RoHS/REACH compliance certification, and long lifecycle support for design-in confidence.
| Product attributes | Property Value |
| Manufacturer | NXP USA Inc. |
| Product Series | GreenChip™ II |
| Packaging | Tape & Reel (TR) | |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | 650V |
| Topology | Flyback |
| Voltage - Start Up | 11 V |
| Voltage - Supply (Vcc/Vdd) | 8.7V ~ 20V |
| Duty Cycle | - |
| Frequency - Switching | 25kHz ~ 175kHz |
| Power (Watts) | 150 W |
| Fault Protection | Current Limiting, Over Power, Over Temperature, Over Voltage, Short Circuit |
| Control Features | - |
| Operating Temperature | -20°C ~ 145°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 14-SO |
TEA1506T/N1,118.pdf
×
