NXP USA Inc. TEA1506T/N1,518
Regular price
Dhs. 355,877.81
Regular price
Dhs. 374,608.22
Sale price
Dhs. 355,877.81
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,877.81 | Dhs. 355,877.81 |
| 15+ | Dhs. 344,639.56 | Dhs. 5,169,593.40 |
| 25+ | Dhs. 337,147.40 | Dhs. 8,428,685.00 |
| 50+ | Dhs. 318,416.99 | Dhs. 15,920,849.50 |
| 100+ | Dhs. 280,956.17 | Dhs. 28,095,617.00 |
| N+ | Dhs. 56,191.23 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry

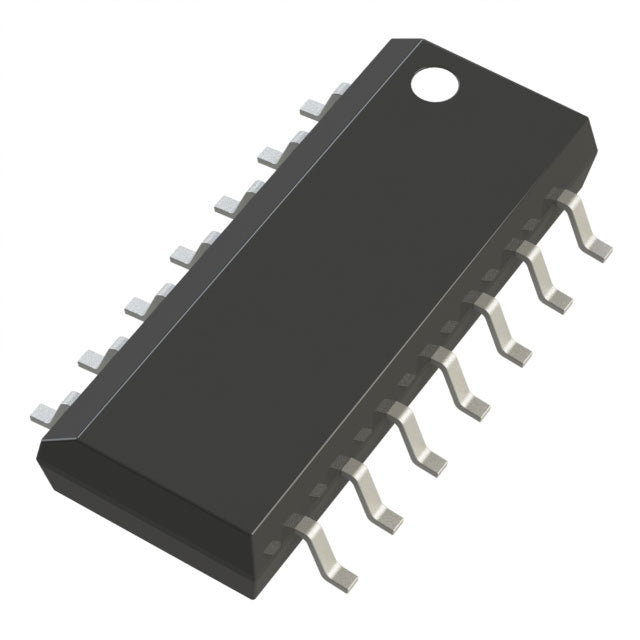

NXP TEA1506T/N1,518 GreenChip™ II Flyback Controller
The TEA1506T/N1,518 is a high-performance AC/DC offline switching controller from NXP's GreenChip™ II series, designed for flyback topology switch-mode power supplies up to 150W. This integrated circuit features comprehensive protection mechanisms and operates across a wide switching frequency range of 25kHz to 175kHz, making it ideal for energy-efficient power conversion applications in industrial, telecommunications, and consumer electronics.
Key Features & Benefits
- High Voltage Capability: 650V breakdown voltage for robust performance
- Wide Operating Range: Supply voltage 8.7V to 20V with 11V start-up
- Flexible Switching: 25kHz to 175kHz frequency range for design optimization
- Comprehensive Protection: Current limiting, over-power, over-temperature, over-voltage, and short circuit protection
- Compact Design: Surface mount 14-SO package for space-efficient layouts
- Industrial Grade: Operating temperature range -20°C to 145°C (TJ)
Applications
- Switch-mode power supplies (SMPS)
- AC/DC adapters and chargers
- Industrial power conversion systems
- Telecommunications equipment
- Consumer electronics power supplies
- LED lighting drivers
Part Number: TEA1506T/N1,518 | Package: 14-SO Surface Mount | RoHS Compliant
| Product attributes | Property Value |
| Manufacturer | NXP USA Inc. |
| Product Series | GreenChip™ II |
| Packaging | | |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | 650V |
| Topology | Flyback |
| Voltage - Start Up | 11 V |
| Voltage - Supply (Vcc/Vdd) | 8.7V ~ 20V |
| Duty Cycle | - |
| Frequency - Switching | 25kHz ~ 175kHz |
| Power (Watts) | 150 W |
| Fault Protection | Current Limiting, Over Power, Over Temperature, Over Voltage, Short Circuit |
| Control Features | - |
| Operating Temperature | -20°C ~ 145°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 14-SO |
TEA1506T/N1,518.pdf
×
