NXP USA Inc. TEA1521T/N2,118
Regular price
Dhs. 1.99
Regular price
Dhs. 2.10
Sale price
Dhs. 1.99
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 1.99 | Dhs. 1.99 |
| 15+ | Dhs. 1.93 | Dhs. 28.95 |
| 25+ | Dhs. 1.89 | Dhs. 47.25 |
| 50+ | Dhs. 1.79 | Dhs. 89.50 |
| 100+ | Dhs. 1.58 | Dhs. 158.00 |
| N+ | Dhs. 0.32 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry

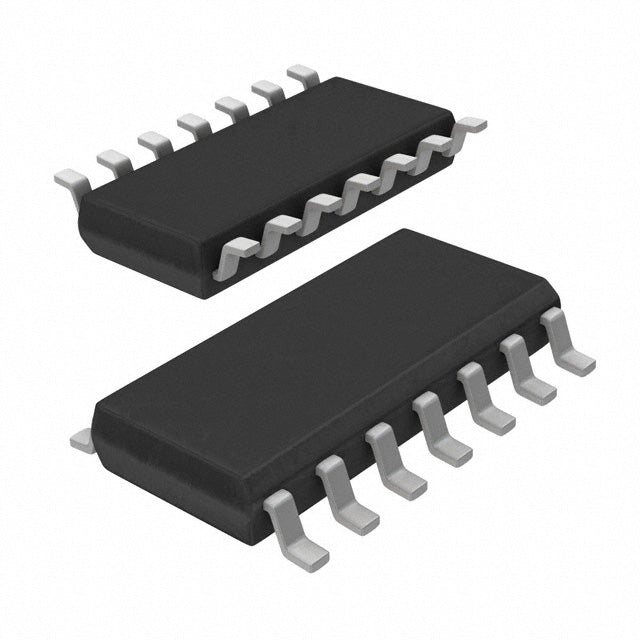

NXP TEA1521T/N2,118 STARplug™ AC/DC Converter IC
The TEA1521T/N2,118 is a high-performance flyback AC/DC converter IC from NXP's STARplug™ series, designed for reliable offline switching applications up to 30W. Featuring a 650V breakdown voltage and integrated protection circuits, this surface-mount controller delivers exceptional efficiency and safety for industrial, telecommunications, and mission-critical power supply designs.
Key Features
- 30W Power Output - Ideal for compact, efficient power supplies
- 650V Breakdown Voltage - High-voltage capability for robust isolation
- 10kHz to 200kHz Switching Frequency - Flexible frequency control for optimized performance
- Comprehensive Protection - Current limiting, over-temperature, and short-circuit fault protection
- Wide Operating Range - 7.5V to 40V supply voltage, -40°C to 145°C junction temperature
- Surface Mount 14-SO Package - Space-saving design for modern PCB layouts
Applications
Perfect for aerospace, automotive, industrial control systems, medical devices, and telecommunications equipment requiring long lifecycle availability and full traceability.
| Product attributes | Property Value |
| Manufacturer | NXP USA Inc. |
| Product Series | STARplug™ |
| Packaging | Tape & Reel (TR) | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 650V |
| Topology | Flyback |
| Voltage - Start Up | 9.5 V |
| Voltage - Supply (Vcc/Vdd) | 7.5V ~ 40V |
| Duty Cycle | 75% |
| Frequency - Switching | 10kHz ~ 200kHz |
| Power (Watts) | 30 W |
| Fault Protection | Current Limiting, Over Temperature, Short Circuit |
| Control Features | Frequency Control |
| Operating Temperature | -40°C ~ 145°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 14-SO |
TEA1521T/N2,118.pdf
×
