NXP USA Inc. TEA1522T/N2,118
Regular price
Dhs. 3.15
Regular price
Dhs. 3.30
Sale price
Dhs. 3.15
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 3.15 | Dhs. 3.15 |
| 15+ | Dhs. 3.04 | Dhs. 45.60 |
| 25+ | Dhs. 2.97 | Dhs. 74.25 |
| 50+ | Dhs. 2.81 | Dhs. 140.50 |
| 100+ | Dhs. 2.48 | Dhs. 248.00 |
| N+ | Dhs. 0.50 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry

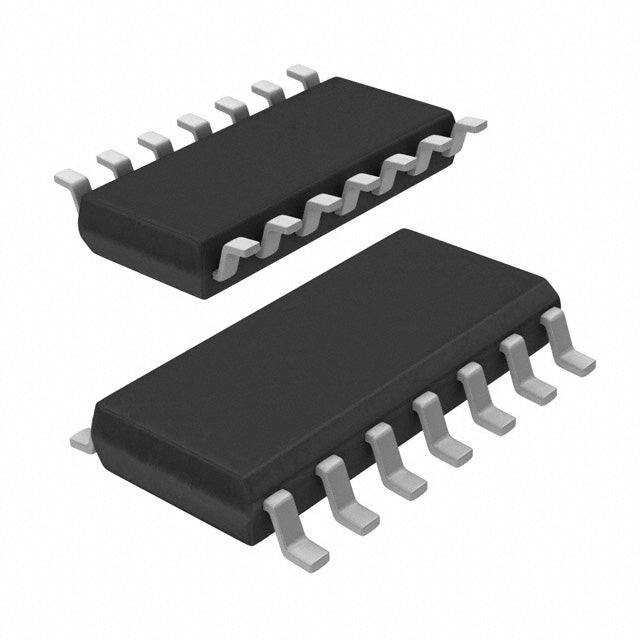

NXP TEA1522T/N2,118 - STARplug™ Flyback Switching Controller
The TEA1522T/N2,118 is a high-performance AC/DC offline flyback switching controller from NXP's STARplug™ series, designed for reliable power conversion applications up to 30W. This integrated controller features a 650V breakdown voltage, frequency control, and comprehensive fault protection including current limiting, over-temperature, and short circuit protection.
Key Features:
- Isolated flyback topology with internal switches
- Wide supply voltage range: 7.5V to 40V
- Adjustable switching frequency: 10kHz to 200kHz
- 75% maximum duty cycle
- Extended operating temperature: -40°C to 145°C (TJ)
- Surface mount 14-SOIC package for automated assembly
Ideal for industrial power supplies, consumer electronics, and embedded systems requiring efficient, compact AC/DC conversion with robust protection features.
| Product attributes | Property Value |
| Manufacturer | NXP USA Inc. |
| Product Series | STARplug™ |
| Packaging | Tape & Reel (TR) | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 650V |
| Topology | Flyback |
| Voltage - Start Up | 9.5 V |
| Voltage - Supply (Vcc/Vdd) | 7.5V ~ 40V |
| Duty Cycle | 75% |
| Frequency - Switching | 10kHz ~ 200kHz |
| Power (Watts) | 30 W |
| Fault Protection | Current Limiting, Over Temperature, Short Circuit |
| Control Features | Frequency Control |
| Operating Temperature | -40°C ~ 145°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 14-SO |
TEA1522T/N2,118.pdf
×
