NXP USA Inc. TEA1533T/N1,518
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,877.81 | Dhs. 355,877.81 |
| 15+ | Dhs. 344,639.56 | Dhs. 5,169,593.40 |
| 25+ | Dhs. 337,147.40 | Dhs. 8,428,685.00 |
| 50+ | Dhs. 318,416.99 | Dhs. 15,920,849.50 |
| 100+ | Dhs. 280,956.17 | Dhs. 28,095,617.00 |
| N+ | Dhs. 56,191.23 | Price Inquiry |
Request Quote / Inquiry
NXP TEA1533T/N1,518 GreenChip™ II Flyback Controller IC
The TEA1533T/N1,518 is a high-performance AC/DC offline switching controller from NXP's GreenChip™ II family, designed for isolated flyback topology power supplies up to 250W. This advanced power management IC delivers exceptional efficiency and reliability for industrial, telecommunications, and consumer electronics applications.
Key Features & Benefits
- High Voltage Capability: 650V breakdown voltage for robust performance
- Wide Switching Frequency Range: 25kHz to 175kHz for design flexibility
- Comprehensive Protection: Current limiting, over-power, over-temperature, over-voltage, and short circuit protection
- Efficient Power Delivery: Optimized for up to 250W output power
- Compact Surface Mount Package: 14-SOIC for space-efficient PCB layouts
- Wide Operating Temperature: -20°C to 145°C (TJ) for demanding environments
Typical Applications
- Switch-mode power supplies (SMPS)
- AC/DC adapters and chargers
- Industrial power systems
- Telecommunications equipment
- Consumer electronics power management
Why Choose This Component?
As an authorized distributor, we provide genuine NXP semiconductors with full traceability and lifecycle support. The TEA1533T/N1,518 offers designers a proven, reliable solution for flyback power supply designs with built-in protection features that reduce external component count and improve system reliability.
Quality Assurance: All components are sourced directly from NXP USA Inc. and come with manufacturer warranties and complete documentation support.
| Product attributes | Property Value |
| Manufacturer | NXP USA Inc. |
| Product Series | GreenChip™ II |
| Packaging | | |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | 650V |
| Topology | Flyback |
| Voltage - Start Up | 11 V |
| Voltage - Supply (Vcc/Vdd) | 8.7V ~ 20V |
| Duty Cycle | - |
| Frequency - Switching | 25kHz ~ 175kHz |
| Power (Watts) | 250 W |
| Fault Protection | Current Limiting, Over Power, Over Temperature, Over Voltage, Short Circuit |
| Control Features | - |
| Operating Temperature | -20°C ~ 145°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

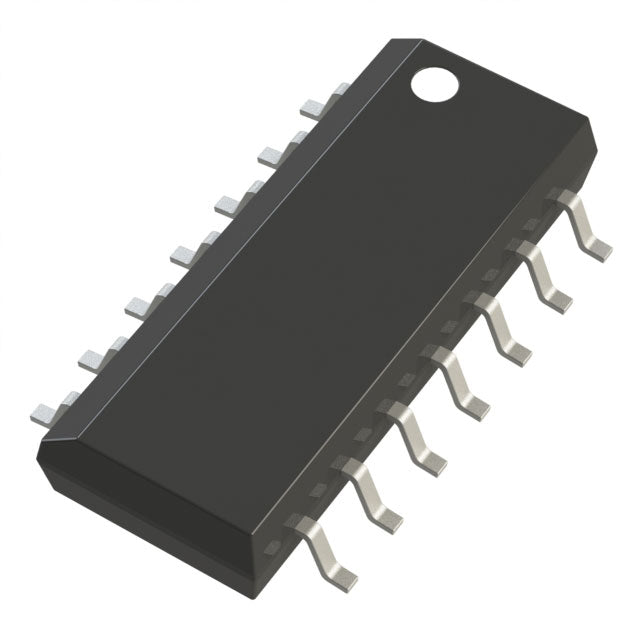

| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 14-SO |
TEA1533T/N1,518.pdf
