NXP USA Inc. TEA1552T/N1,118
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 2.77 | Dhs. 2.77 |
| 15+ | Dhs. 2.69 | Dhs. 40.35 |
| 25+ | Dhs. 2.63 | Dhs. 65.75 |
| 50+ | Dhs. 2.48 | Dhs. 124.00 |
| 100+ | Dhs. 2.19 | Dhs. 219.00 |
| N+ | Dhs. 0.44 | Price Inquiry |
Request Quote / Inquiry
TEA1552T/N1,118 - GreenChip™ II Flyback Controller IC
The TEA1552T/N1,118 from NXP USA Inc. is a high-performance offline flyback controller IC from the GreenChip™ II series, designed for efficient AC/DC power conversion up to 250W. This isolated controller features advanced fault protection including current limiting, over-power, over-temperature, and over-voltage safeguards, making it ideal for industrial, telecom, and consumer power supply applications.
Key Features & Benefits
- High Power Capability: Supports up to 250W output power with flyback topology
- Wide Operating Range: 8.7V to 20V supply voltage, 25kHz to 125kHz switching frequency
- Robust Protection: Comprehensive fault protection ensures long-term reliability
- High Voltage Rating: 650V breakdown voltage for demanding applications
- Surface Mount Design: 14-SOIC package for automated assembly and space efficiency
- Extended Temperature Range: -20°C to 145°C junction temperature for harsh environments
Applications
Perfect for aerospace, automotive, industrial control systems, medical equipment, telecommunications infrastructure, and other high-reliability applications requiring long lifecycle components with full traceability and RoHS/REACH compliance.
Compliance & Quality: This component is supplied with full manufacturer traceability, RoHS and REACH compliance documentation. As an authorized distributor, we guarantee 100% authentic NXP components with long lifecycle support for design-in confidence.
| Product attributes | Property Value |
| Manufacturer | NXP USA Inc. |
| Product Series | GreenChip™ II |
| Packaging | Tape & Reel (TR) | |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | 650V |
| Topology | Flyback |
| Voltage - Start Up | 11 V |
| Voltage - Supply (Vcc/Vdd) | 8.7V ~ 20V |
| Duty Cycle | - |
| Frequency - Switching | 25kHz ~ 125kHz |
| Power (Watts) | 250 W |
| Fault Protection | Current Limiting, Over Power, Over Temperature, Over Voltage |
| Control Features | - |
| Operating Temperature | -20°C ~ 145°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

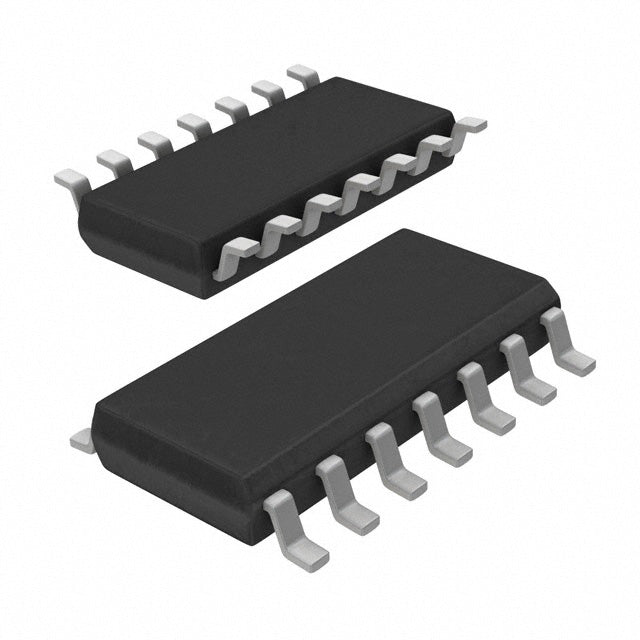

| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 14-SO |
TEA1552T/N1,118.pdf
