NXP USA Inc. TEA1755LT/1Y
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 8.32 | Dhs. 8.32 |
| 15+ | Dhs. 8.07 | Dhs. 121.05 |
| 25+ | Dhs. 7.89 | Dhs. 197.25 |
| 50+ | Dhs. 7.45 | Dhs. 372.50 |
| 100+ | Dhs. 6.58 | Dhs. 658.00 |
| N+ | Dhs. 1.32 | Price Inquiry |
Request Quote / Inquiry

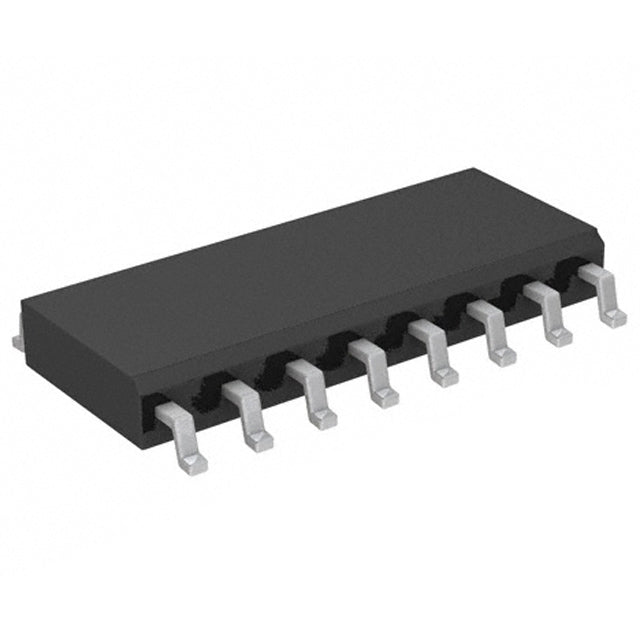

NXP TEA1755LT/1Y GreenChip™ II Flyback Controller
The TEA1755LT/1Y from NXP USA Inc. is a high-performance AC/DC offline flyback controller designed for reliable, energy-efficient power conversion up to 250W. Part of the proven GreenChip™ II series, this isolated controller delivers exceptional performance across aerospace, automotive, industrial, telecommunications, medical, and consumer electronics applications.
Key Features & Benefits
- High Power Capability: Supports up to 250W output with 650V breakdown voltage for robust operation
- Wide Operating Range: 13.4V to 38V supply voltage with 22.3V start-up threshold
- Flexible Switching Frequency: Dual-mode operation at 119-159kHz and 110-150kHz for optimized efficiency
- Comprehensive Protection: Integrated current limiting, over-power, over-temperature, and over-voltage fault protection
- Extended Temperature Range: Operates reliably from -40°C to 155°C (TJ) for demanding environments
- RoHS Compliant: Meets environmental standards for global deployment
- Surface Mount Package: 16-SOIC (3.90mm width) for automated assembly and space-efficient designs
Applications
Ideal for OEMs and EMS providers requiring long lifecycle support and full traceability in power supply designs for industrial equipment, telecommunications infrastructure, medical devices, automotive systems, and aerospace applications.
Quality & Compliance
Sourced directly from authorized NXP channels with complete traceability documentation. Available in Cut Tape (CT) and Tape & Reel (TR) packaging options to support prototype through production volumes.
For detailed electrical characteristics, application notes, and reference designs, please refer to the official NXP TEA1755LT datasheet.
| Product attributes | Property Value |
| Manufacturer | NXP USA Inc. |
| Product Series | GreenChip™ II |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | 650V |
| Topology | Flyback |
| Voltage - Start Up | 22.3 V |
| Voltage - Supply (Vcc/Vdd) | 13.4V ~ 38V |
| Duty Cycle | - |
| Frequency - Switching | 119kHz ~ 159kHz, 110kHz ~ 150kHz |
| Power (Watts) | 250 W |
| Fault Protection | Current Limiting, Over Power, Over Temperature, Over Voltage |
| Control Features | - |
| Operating Temperature | -40°C ~ 155°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SO |
| ROHS |  |
TEA1755LT/1Y.pdf
