NXP USA Inc. TEA18361LT/2J
Regular price
Dhs. 2.29
Regular price
Dhs. 2.40
Sale price
Dhs. 2.29
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 2.29 | Dhs. 2.29 |
| 15+ | Dhs. 2.21 | Dhs. 33.15 |
| 25+ | Dhs. 2.16 | Dhs. 54.00 |
| 50+ | Dhs. 2.04 | Dhs. 102.00 |
| 100+ | Dhs. 1.80 | Dhs. 180.00 |
| N+ | Dhs. 0.36 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry

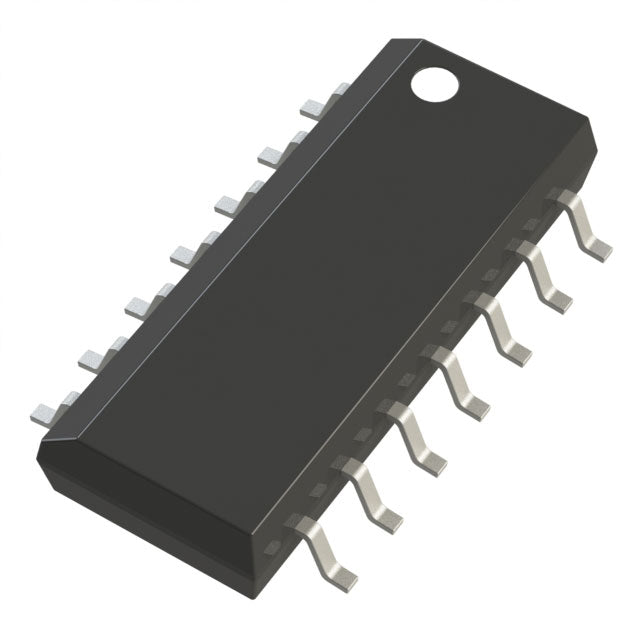

NXP TEA18361LT/2J GreenChip Flyback SMPS Controller IC
The TEA18361LT/2J is a high-performance isolated flyback switching mode power supply (SMPS) controller IC from NXP USA Inc. Designed for energy-efficient AC/DC conversion applications, this GreenChip controller features integrated switching with a wide supply voltage range of 9.9V to 30V and a 14.9V start-up voltage.
Key Features:
- Isolated flyback topology with internal switches
- Wide switching frequency range: 25kHz to 132.5kHz
- Comprehensive fault protection: over-power, over-temperature, and over-voltage
- Advanced control features including frequency control and soft start
- Extended operating temperature: -40°C to 150°C (TJ)
- Surface mount 14-SOIC package (3.90mm width)
- RoHS compliant for environmental compliance
Applications: Ideal for power adapters, battery chargers, auxiliary power supplies, and energy-efficient consumer electronics requiring reliable AC/DC conversion with robust protection mechanisms.
Package: Available in tape and reel (TR) packaging for automated assembly processes.
| Product attributes | Property Value |
| Manufacturer | NXP USA Inc. |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | - |
| Topology | Flyback |
| Voltage - Start Up | 14.9 V |
| Voltage - Supply (Vcc/Vdd) | 9.9V ~ 30V |
| Duty Cycle | - |
| Frequency - Switching | 25kHz ~ 132.5kHz |
| Power (Watts) | - |
| Fault Protection | Over Power, Over Temperature, Over Voltage |
| Control Features | Frequency Control, Soft Start |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 14-SO |
| ROHS |  |
TEA18361LT/2J.pdf
×
