NXP USA Inc. TEA19363LT/1J
Regular price
Dhs. 2.36
Regular price
Dhs. 2.47
Sale price
Dhs. 2.36
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 2.36 | Dhs. 2.36 |
| 15+ | Dhs. 2.27 | Dhs. 34.05 |
| 25+ | Dhs. 2.22 | Dhs. 55.50 |
| 50+ | Dhs. 2.10 | Dhs. 105.00 |
| 100+ | Dhs. 1.85 | Dhs. 185.00 |
| N+ | Dhs. 0.37 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry

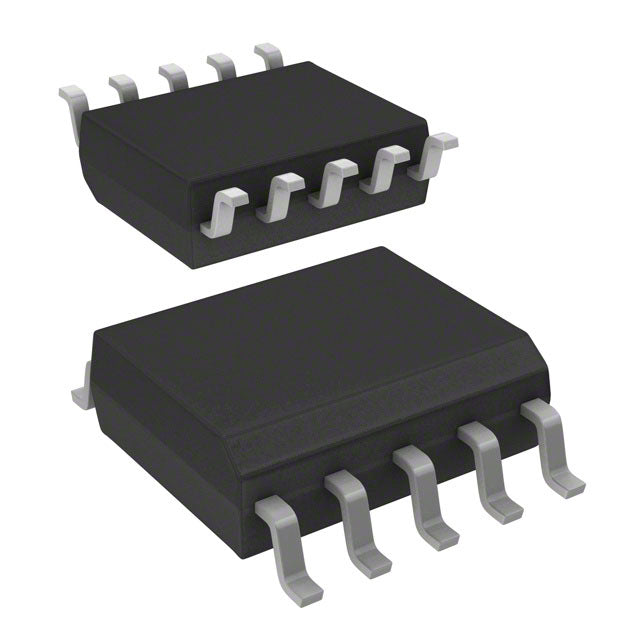

NXP TEA19363LT/1J - GreenChip™ Flyback AC/DC Offline Switching Controller
The TEA19363LT/1J from NXP USA Inc. is a high-performance GreenChip™ series AC/DC offline switching controller designed for flyback topology applications. This surface-mount controller IC delivers reliable power management with comprehensive fault protection including over-power, over-temperature, and over-voltage safeguards.
Key Features:
- Wide Supply Voltage Range: 0V to 120V operation with 14.9V start-up voltage
- Flexible Switching Frequency: 25.5kHz to 128kHz for optimized efficiency
- Comprehensive Protection: Over-power, over-temperature, and over-voltage fault protection
- Industrial Temperature Range: -25°C to 125°C (TJ) for demanding applications
- Compact Package: 10-SOIC (3.90mm width) surface mount design
- RoHS Compliant: Environmentally friendly and regulation-compliant
Applications:
Ideal for AC/DC power supplies, battery chargers, LED drivers, and industrial control systems requiring isolated flyback topology with robust protection features.
| Product attributes | Property Value |
| Manufacturer | NXP USA Inc. |
| Product Series | GreenChip™ |
| Packaging | Tape & Reel (TR) | |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Topology | Flyback |
| Voltage - Start Up | 14.9 V |
| Voltage - Supply (Vcc/Vdd) | 0V ~ 120V |
| Duty Cycle | - |
| Frequency - Switching | 25.5kHz ~ 128kHz |
| Power (Watts) | - |
| Fault Protection | Over Power, Over Temperature, Over Voltage |
| Control Features | - |
| Operating Temperature | -25°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 10-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 10-SO |
| ROHS |  |
TEA19363LT/1J.pdf
×
