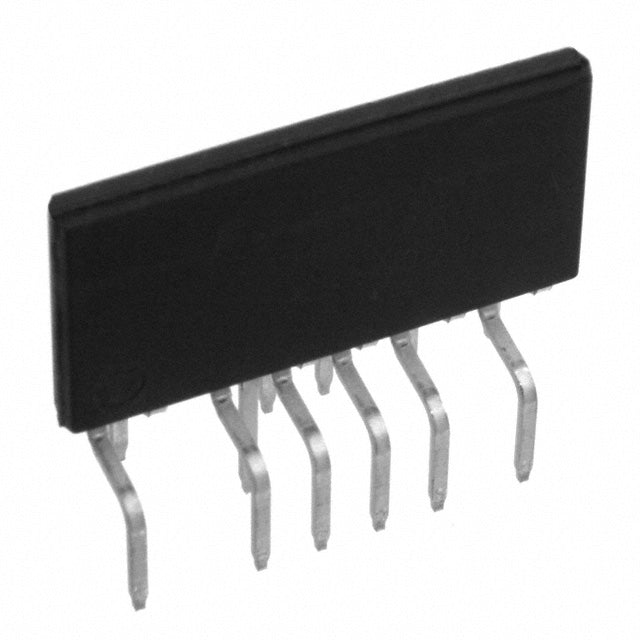

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
TFS757HG
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,892.34 AED | Dhs. 355,892.34 AED |
| 15+ | Dhs. 344,653.64 AED | Dhs. 5,169,804.60 AED |
| 25+ | Dhs. 337,161.17 AED | Dhs. 8,429,029.25 AED |
| 50+ | Dhs. 318,429.99 AED | Dhs. 15,921,499.50 AED |
| 100+ | Dhs. 280,967.64 AED | Dhs. 28,096,764.00 AED |
| N+ | Dhs. 56,193.53 AED | Price Inquiry |
Couldn't load pickup availability
Power Integrations TFS757HG - HiperTFS® Offline Switcher IC
The TFS757HG is a high-performance offline switcher IC from Power Integrations' HiperTFS® family, designed for isolated AC-DC power conversion applications up to 193W. This integrated solution combines a high-voltage power MOSFET with advanced control circuitry, delivering exceptional efficiency and reliability for industrial, telecom, and consumer electronics applications.
Key Features & Benefits
- 193W Power Output - Ideal for mid-power AC-DC converters and adapters
- Dual Topology Support - Flyback and forward converter configurations for design flexibility
- High Voltage Capability - 530V/725V breakdown voltage for universal input designs
- 66kHz Switching Frequency - Optimized for compact transformer design and low EMI
- Comprehensive Protection - Current limiting, over-temperature, over-voltage, and short-circuit safeguards
- Wide Operating Range - -40°C to 150°C junction temperature for harsh environments
- eSIP-16B Package - Through-hole mounting with exposed pad for superior thermal performance
Applications
Industrial power supplies, telecom equipment, LED lighting drivers, home appliances, battery chargers, and auxiliary power modules for motor drives and automation systems.
Why Choose Authorized Distribution?
We provide 100% authentic Power Integrations components with full manufacturer traceability, comprehensive datasheets, reference designs, and technical support. Long lifecycle availability ensures your designs remain supported throughout production.
| Product attributes | Property Value |
| Manufacturer | Power Integrations |
| Product Series | HiperTFS® |
| Packaging | | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 530V, 725V |
| Topology | Flyback, Forward |
| Voltage - Start Up | 12.1 V |
| Voltage - Supply (Vcc/Vdd) | 11.1V ~ 13.4V |
| Duty Cycle | 70% |
| Frequency - Switching | 66kHz |
| Power (Watts) | 193 W |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage, Short Circuit |
| Control Features | EN |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 16-SSIP, 12 Leads, Exposed Pad, Formed Leads |
| Supplier Device Package | eSIP-16B |
| ROHS |  |
TFS757HG.pdf
