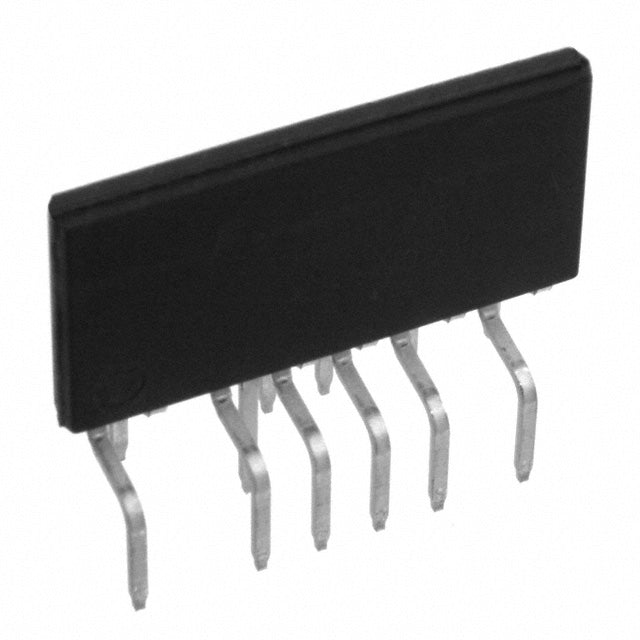

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
TFS758HG
Regular price
Dhs. 355,892.34
Regular price
Dhs. 374,623.52
Sale price
Dhs. 355,892.34
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,892.34 AED | Dhs. 355,892.34 AED |
| 15+ | Dhs. 344,653.64 AED | Dhs. 5,169,804.60 AED |
| 25+ | Dhs. 337,161.17 AED | Dhs. 8,429,029.25 AED |
| 50+ | Dhs. 318,429.99 AED | Dhs. 15,921,499.50 AED |
| 100+ | Dhs. 280,967.64 AED | Dhs. 28,096,764.00 AED |
| N+ | Dhs. 56,193.53 AED | Price Inquiry |
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Recycling Electronic Components
TFS758HG - HiperTFS® Offline AC-DC Converter IC
The TFS758HG from Power Integrations is a high-performance offline AC-DC converter IC featuring the advanced HiperTFS® topology. Designed for multi-topology applications including flyback and forward converters, this device delivers up to 236W of output power with exceptional efficiency and reliability.
Key Features & Benefits
- Multi-Topology Support: Flyback and forward converter configurations for design flexibility
- High Power Capability: 236W output power for demanding applications
- Dual Breakdown Voltage: 530V and 725V ratings for robust performance
- 66kHz Switching Frequency: Optimized for efficiency and EMI performance
- Comprehensive Protection: Current limiting, over-temperature, over-voltage, and short-circuit protection
- Wide Operating Range: -40°C to 150°C junction temperature
- Isolated Output: Enhanced safety and noise immunity
Applications
Ideal for industrial power supplies, telecommunications equipment, LED lighting drivers, home appliances, and consumer electronics requiring reliable, efficient AC-DC conversion.
Authorized Distributor Guarantee
We supply only genuine Power Integrations components with full manufacturer documentation, traceability, and warranty support. All units are sourced through authorized channels to ensure authenticity and long lifecycle availability.
| Product attributes | Property Value |
| Manufacturer | Power Integrations |
| Product Series | HiperTFS® |
| Packaging | | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 530V, 725V |
| Topology | Flyback, Forward |
| Voltage - Start Up | 12.1 V |
| Voltage - Supply (Vcc/Vdd) | 11.1V ~ 13.4V |
| Duty Cycle | 70% |
| Frequency - Switching | 66kHz |
| Power (Watts) | 236 W |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage, Short Circuit |
| Control Features | EN |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 16-SSIP, 12 Leads, Exposed Pad, Formed Leads |
| Supplier Device Package | eSIP-16B |
| ROHS |  |
TFS758HG.pdf
×
