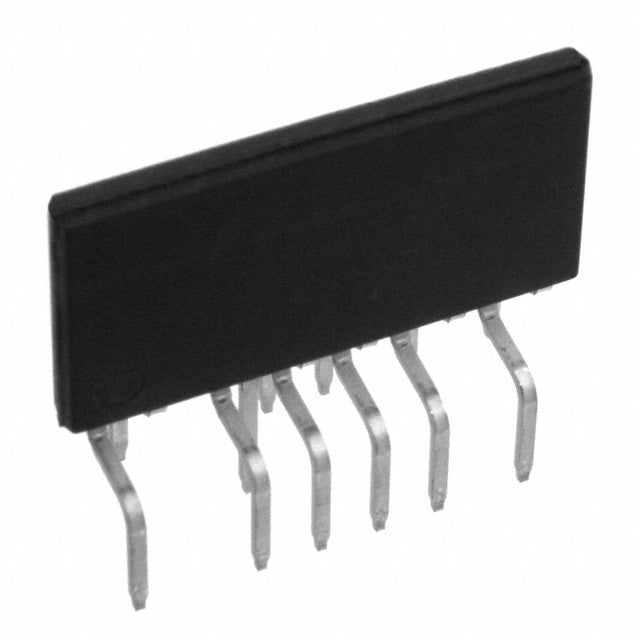

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
TFS760HG
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,892.34 AED | Dhs. 355,892.34 AED |
| 15+ | Dhs. 344,653.64 AED | Dhs. 5,169,804.60 AED |
| 25+ | Dhs. 337,161.17 AED | Dhs. 8,429,029.25 AED |
| 50+ | Dhs. 318,429.99 AED | Dhs. 15,921,499.50 AED |
| 100+ | Dhs. 280,967.64 AED | Dhs. 28,096,764.00 AED |
| N+ | Dhs. 56,193.53 AED | Price Inquiry |
Couldn't load pickup availability
TFS760HG - HiperTFS® High-Power Offline Switcher IC
The TFS760HG from Power Integrations is a high-performance offline converter IC from the HiperTFS® family, designed for demanding industrial, telecommunications, and power supply applications requiring up to 305W output power. This integrated switcher combines advanced flyback and forward topology support with comprehensive protection features, making it ideal for high-reliability designs in aerospace, automotive, and industrial control systems.
Key Features & Benefits
- High Power Density: Delivers up to 305W output power in a compact eSIP-16B package
- Dual Topology Support: Supports both flyback and forward converter topologies for design flexibility
- Wide Operating Range: 11.1V to 13.4V supply voltage with 12.1V startup threshold
- Advanced Protection: Integrated current limiting, over-temperature, over-voltage, and short-circuit protection
- High Efficiency: 66kHz switching frequency optimized for efficiency and EMI performance
- Extended Temperature Range: -40°C to 150°C junction temperature for harsh environments
- Dual Breakdown Voltage: 530V/725V breakdown ratings for universal input applications
Applications
The TFS760HG is engineered for high-reliability applications including industrial automation, telecom infrastructure, server power supplies, LED lighting drivers, and battery charging systems. Its robust protection features and wide operating temperature range make it suitable for mission-critical aerospace and automotive electronics.
Authorized Distributor - Full Traceability
We are an authorized distributor of Power Integrations products, providing 100% authentic components with complete manufacturer documentation, traceability, and warranty support. All units ship with certificates of conformance and are backed by our commitment to long lifecycle availability.
Design Support & Documentation
Full datasheets, reference designs, application notes, and technical support available. Contact our design-in team for assistance with circuit design, component selection, and long-term availability planning.
| Product attributes | Property Value |
| Manufacturer | Power Integrations |
| Product Series | HiperTFS® |
| Packaging | | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 530V, 725V |
| Topology | Flyback, Forward |
| Voltage - Start Up | 12.1 V |
| Voltage - Supply (Vcc/Vdd) | 11.1V ~ 13.4V |
| Duty Cycle | 70% |
| Frequency - Switching | 66kHz |
| Power (Watts) | 305 W |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage, Short Circuit |
| Control Features | EN |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 16-SSIP, 12 Leads, Exposed Pad, Formed Leads |
| Supplier Device Package | eSIP-16B |
| ROHS |  |
