Power Integrations TFS761HG
Regular price
Dhs. 355,921.41
Regular price
Dhs. 374,654.12
Sale price
Dhs. 355,921.41
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,921.41 | Dhs. 355,921.41 |
| 15+ | Dhs. 344,681.79 | Dhs. 5,170,226.85 |
| 25+ | Dhs. 337,188.71 | Dhs. 8,429,717.75 |
| 50+ | Dhs. 318,456.00 | Dhs. 15,922,800.00 |
| 100+ | Dhs. 280,990.59 | Dhs. 28,099,059.00 |
| N+ | Dhs. 56,198.12 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry

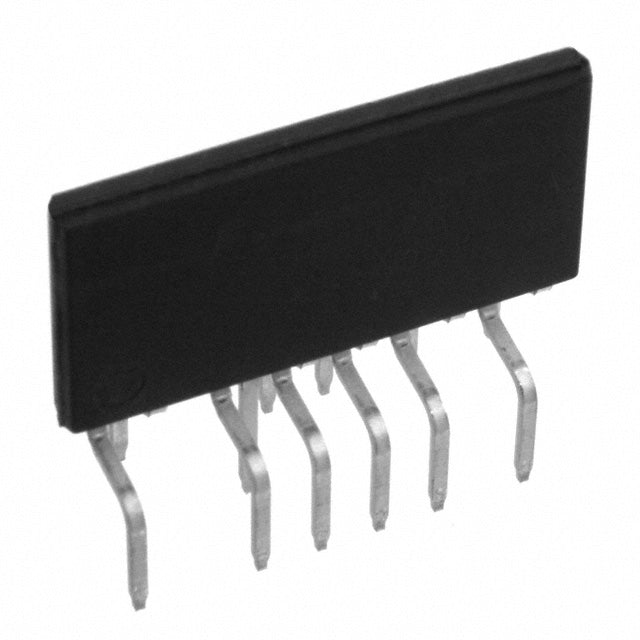

TFS761HG - HiperTFS® High-Power Offline Switcher IC
The TFS761HG from Power Integrations is a high-performance offline converter IC from the HiperTFS® family, designed for multi-topology AC-DC power conversion applications up to 326W. This integrated switcher combines advanced control features with robust fault protection, making it ideal for industrial, telecommunications, and high-reliability power supply designs.
Key Features & Benefits
- High Power Capability: Supports up to 326W output power in flyback and forward topologies
- Dual Voltage Breakdown: 530V and 725V breakdown ratings for universal input applications
- Efficient Switching: 66kHz switching frequency with 70% duty cycle for optimized performance
- Comprehensive Protection: Integrated current limiting, over-temperature, over-voltage, and short-circuit protection
- Wide Operating Range: -40°C to 150°C junction temperature, 11.1V to 13.4V supply voltage
- Low Start-Up Voltage: 12.1V start-up for improved efficiency
- Isolated Output: Provides galvanic isolation for safety-critical applications
Typical Applications
- Industrial power supplies and automation equipment
- Telecommunications infrastructure and networking equipment
- LED lighting drivers and high-power lighting systems
- Battery chargers and energy storage systems
- Medical and test equipment power modules
Why Choose Authorized Distribution?
When you purchase the TFS761HG from our authorized channel, you receive:
- ✓ 100% genuine Power Integrations components with full manufacturer traceability
- ✓ Complete technical documentation and reference designs
- ✓ Long lifecycle availability to support your product programs
- ✓ Design-in support and application engineering assistance
- ✓ Global shipping through authorized logistics partners
Need technical support or volume pricing? Contact our design-in team for application assistance and custom solutions.
| Product attributes | Property Value |
| Manufacturer | Power Integrations |
| Product Series | HiperTFS® |
| Packaging | | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 530V, 725V |
| Topology | Flyback, Forward |
| Voltage - Start Up | 12.1 V |
| Voltage - Supply (Vcc/Vdd) | 11.1V ~ 13.4V |
| Duty Cycle | 70% |
| Frequency - Switching | 66kHz |
| Power (Watts) | 326 W |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage, Short Circuit |
| Control Features | EN |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 16-SSIP, 12 Leads, Exposed Pad, Formed Leads |
| Supplier Device Package | eSIP-16B |
| ROHS |  |
TFS761HG.pdf
×
