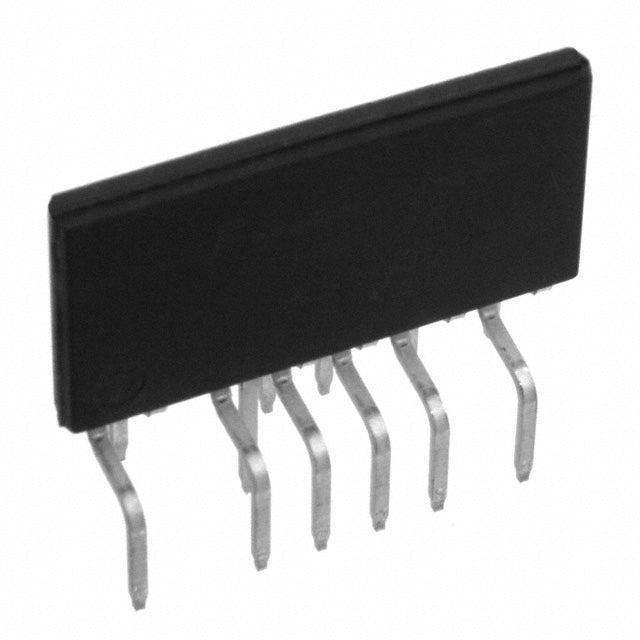

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
TFS762HG
Regular price
Dhs. 355,892.34
Regular price
Dhs. 374,623.52
Sale price
Dhs. 355,892.34
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,892.34 AED | Dhs. 355,892.34 AED |
| 15+ | Dhs. 344,653.64 AED | Dhs. 5,169,804.60 AED |
| 25+ | Dhs. 337,161.17 AED | Dhs. 8,429,029.25 AED |
| 50+ | Dhs. 318,429.99 AED | Dhs. 15,921,499.50 AED |
| 100+ | Dhs. 280,967.64 AED | Dhs. 28,096,764.00 AED |
| N+ | Dhs. 56,193.53 AED | Price Inquiry |
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Recycling Electronic Components
TFS762HG - HiperTFS® High-Power Offline Switcher IC
The TFS762HG from Power Integrations is a high-performance offline switcher IC from the HiperTFS® family, designed for AC-DC power conversion applications up to 360W. This integrated solution combines a high-voltage power MOSFET with advanced control circuitry, delivering exceptional efficiency and reliability for industrial, telecommunications, and automotive power supply designs.
Key Features & Benefits
- 360W Power Handling: Supports high-power applications with flyback and forward converter topologies
- Dual Breakdown Voltage: 530V and 725V ratings provide design flexibility and enhanced safety margins
- 66kHz Switching Frequency: Optimized for efficiency while enabling compact transformer designs
- Comprehensive Protection: Integrated current limiting, over-temperature, over-voltage, and short-circuit protection
- Wide Operating Range: -40°C to 150°C junction temperature for demanding environments
- Low Startup Voltage: 12.1V startup with 11.1V to 13.4V operating range
- Through-Hole Package: eSIP-16B package for reliable manufacturing and thermal performance
- RoHS Compliant: Meets environmental standards for global deployment
Typical Applications
- Industrial power supplies and automation equipment
- Telecommunications infrastructure and base stations
- Automotive auxiliary power systems
- LED lighting drivers and ballasts
- Server and networking equipment PSUs
- Battery charging systems
Why Choose HQICKEY for Your TFS762HG?
- ✓ Authorized Distributor: 100% genuine Power Integrations components with full manufacturer traceability
- ✓ Technical Support: Design-in assistance, reference designs, and application notes available
- ✓ Long Lifecycle Commitment: Guaranteed availability to support your product programs
- ✓ Global Shipping: Fast delivery through authorized distribution channels
- ✓ Quality Assurance: Complete documentation and authenticity guarantees
Documentation: Full datasheet, application notes, and reference designs available. View HiperTFS Family Datasheet
Need design support or volume pricing? Contact our technical team for personalized assistance with your power supply project.
| Product attributes | Property Value |
| Manufacturer | Power Integrations |
| Product Series | HiperTFS® |
| Packaging | | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 530V, 725V |
| Topology | Flyback, Forward |
| Voltage - Start Up | 12.1 V |
| Voltage - Supply (Vcc/Vdd) | 11.1V ~ 13.4V |
| Duty Cycle | 70% |
| Frequency - Switching | 66kHz |
| Power (Watts) | 360 W |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage, Short Circuit |
| Control Features | EN |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 16-SSIP, 12 Leads, Exposed Pad, Formed Leads |
| Supplier Device Package | eSIP-16B |
| ROHS |  |
TFS762HG.pdf
×
