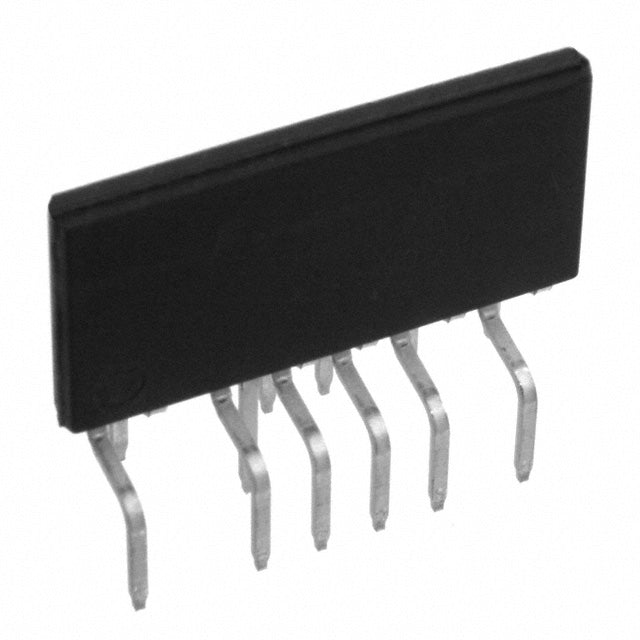

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
TFS763HG
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,892.34 AED | Dhs. 355,892.34 AED |
| 15+ | Dhs. 344,653.64 AED | Dhs. 5,169,804.60 AED |
| 25+ | Dhs. 337,161.17 AED | Dhs. 8,429,029.25 AED |
| 50+ | Dhs. 318,429.99 AED | Dhs. 15,921,499.50 AED |
| 100+ | Dhs. 280,967.64 AED | Dhs. 28,096,764.00 AED |
| N+ | Dhs. 56,193.53 AED | Price Inquiry |
Couldn't load pickup availability
TFS763HG - HiperTFS® High-Power Offline Switcher IC
The TFS763HG from Power Integrations is a high-performance offline converter IC from the HiperTFS® family, designed for demanding industrial, telecommunications, and power supply applications requiring up to 388W output power.
Key Features & Benefits
- High Power Density: Delivers up to 388W in compact flyback and forward converter topologies
- Wide Input Range: 11.1V to 13.4V supply voltage with 12.1V startup
- Advanced Protection: Integrated current limiting, over-temperature, over-voltage, and short-circuit protection
- High Efficiency: 66kHz switching frequency with 70% duty cycle for optimized performance
- Robust Design: 530V/725V breakdown voltage, -40°C to 150°C junction temperature range
- Easy Integration: Through-hole eSIP-16B package with exposed pad for enhanced thermal management
Typical Applications
Ideal for industrial power supplies, telecom infrastructure, server PSUs, LED lighting drivers, battery chargers, and high-reliability AC-DC conversion systems requiring isolated output and comprehensive fault protection.
Authorized Distribution & Support
We supply 100% authentic TFS763HG components with full manufacturer documentation, traceability certificates, and long lifecycle availability. All units are RoHS compliant and backed by Power Integrations' quality guarantee. Technical support and reference designs available.
| Product attributes | Property Value |
| Manufacturer | Power Integrations |
| Product Series | HiperTFS® |
| Packaging | | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 530V, 725V |
| Topology | Flyback, Forward |
| Voltage - Start Up | 12.1 V |
| Voltage - Supply (Vcc/Vdd) | 11.1V ~ 13.4V |
| Duty Cycle | 70% |
| Frequency - Switching | 66kHz |
| Power (Watts) | 388 W |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage, Short Circuit |
| Control Features | EN |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 16-SSIP, 12 Leads, Exposed Pad, Formed Leads |
| Supplier Device Package | eSIP-16B |
| ROHS |  |
TFS763HG.pdf
