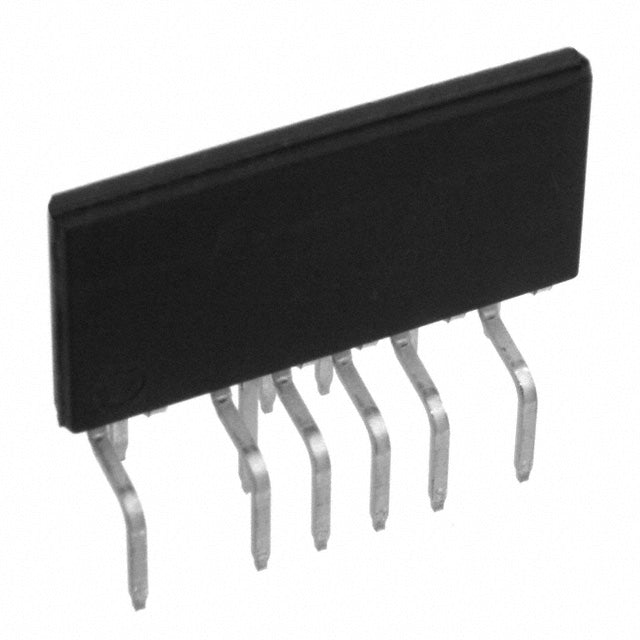

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
TFS764HG
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,892.34 AED | Dhs. 355,892.34 AED |
| 15+ | Dhs. 344,653.64 AED | Dhs. 5,169,804.60 AED |
| 25+ | Dhs. 337,161.17 AED | Dhs. 8,429,029.25 AED |
| 50+ | Dhs. 318,429.99 AED | Dhs. 15,921,499.50 AED |
| 100+ | Dhs. 280,967.64 AED | Dhs. 28,096,764.00 AED |
| N+ | Dhs. 56,193.53 AED | Price Inquiry |
Couldn't load pickup availability
TFS764HG - HiperTFS® High-Power AC-DC Converter IC
The TFS764HG from Power Integrations is a high-performance offline AC-DC converter IC featuring integrated switching technology for flyback and forward topologies. Designed for industrial, telecommunications, and high-power applications requiring up to 414W output with exceptional efficiency and reliability.
Key Features & Benefits
- 414W Power Output - Handles demanding high-power applications with ease
- Dual Topology Support - Flyback and forward converter configurations for design flexibility
- 66kHz Switching Frequency - Optimized for efficiency and EMI performance
- Comprehensive Protection - Current limiting, over-temperature, over-voltage, and short circuit safeguards
- Wide Operating Range - -40°C to 150°C junction temperature for harsh environments
- 530V/725V Breakdown Voltage - High-voltage capability for universal input designs
- eSIP-16B Package - Through-hole mounting with exposed pad for superior thermal management
Ideal Applications
Perfect for aerospace power supplies, industrial automation systems, telecommunications infrastructure, automotive charging systems, and high-reliability equipment requiring long lifecycle support and full manufacturer traceability.
Authorized Distribution Guarantee
We supply only genuine Power Integrations components with complete documentation, authenticity certificates, and full traceability. Every TFS764HG ships with manufacturer warranty support and technical resources including reference designs and application notes.
All specifications subject to manufacturer's datasheet. Contact our technical team for design-in support, reference designs, and application guidance.
| Product attributes | Property Value |
| Manufacturer | Power Integrations |
| Product Series | HiperTFS® |
| Packaging | | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 530V, 725V |
| Topology | Flyback, Forward |
| Voltage - Start Up | 12.1 V |
| Voltage - Supply (Vcc/Vdd) | 11.1V ~ 13.4V |
| Duty Cycle | 70% |
| Frequency - Switching | 66kHz |
| Power (Watts) | 414 W |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage, Short Circuit |
| Control Features | EN |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 16-SSIP, 12 Leads, Exposed Pad, Formed Leads |
| Supplier Device Package | eSIP-16B |
| ROHS |  |
