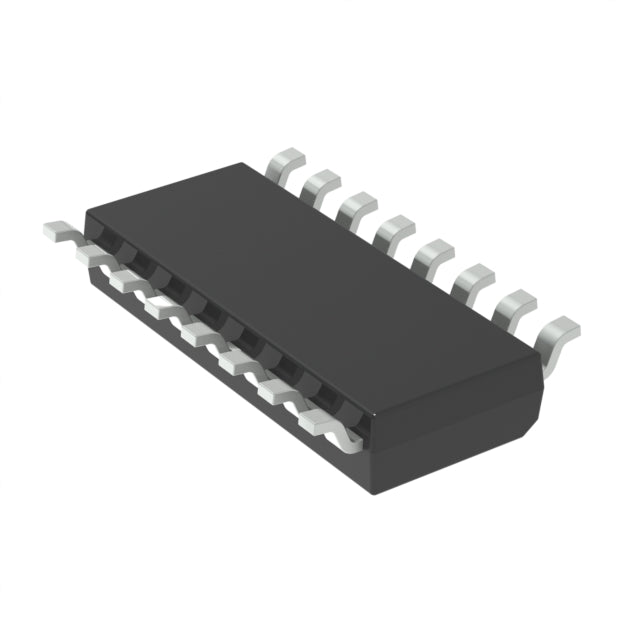

onsemi TL494BDR2G
Regular price
$1.72
Regular price
$1.81
Sale price
$1.72
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.72 | $1.72 |
| 15+ | $1.67 | $25.05 |
| 25+ | $1.63 | $40.75 |
| 50+ | $1.54 | $77.00 |
| 100+ | $1.36 | $136.00 |
| N+ | $0.27 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | SWITCHMODE™ |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Type | Transistor Driver |
| Function | Step-Down, Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Buck, Push-Pull |
| Number of Outputs | 2 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 7V ~ 40V |
| Frequency - Switching | 200kHz |
| Duty Cycle (Max) | 48% |
| Synchronous Rectifier | Yes |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Dead Time Control, Frequency Control |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC |
| ROHS |  |
TL494BDR2G.pdf
×
