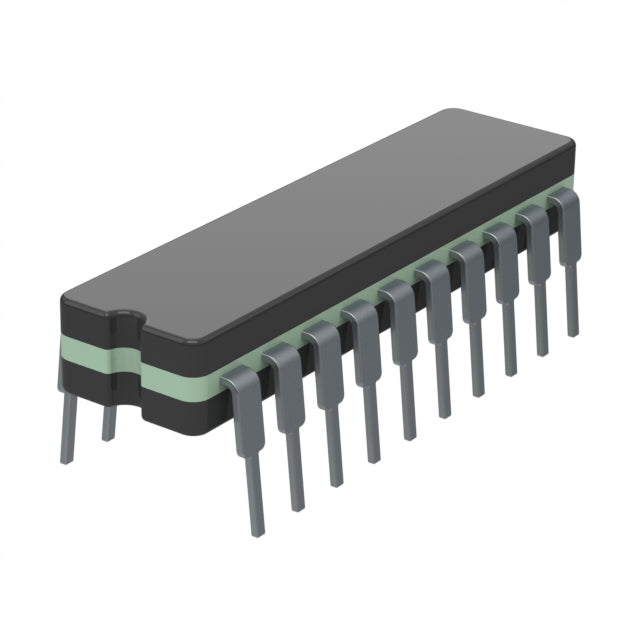

Texas Instruments TLC2543MJB
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 66k |
| Number of Inputs | 11 |
| Input Type | Single Ended |
| Data Interface | Serial |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 4.5V ~ 5.5V |
| Voltage - Supply, Digital | 4.5V ~ 5.5V |
| Features | - |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |
| Package / Case | 20-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 20-CDIP |
| ROHS |  |
The TLC2543MJB from Texas Instruments is a 12-bit, 66k SPS analog-to-digital converter featuring 11 multiplexed input channels. Its serial interface simplifies connection to processors, while the MUX-S/H-ADC architecture ensures accurate sampling. Designed for demanding applications, it operates across a wide temperature range and is available in a durable 20-CDIP package, making it suitable for industrial, automotive, and military systems requiring reliable multi-channel data conversion.
- High Channel Density: 11 multiplexed inputs allow a single device to handle multiple analog signals, reducing board space and system cost.
- Reliable in Extreme Conditions: With a -55°C to 125°C operating range and hermetic CDIP package, it is built for military and industrial environments.
- Simple System Integration: The serial interface minimizes the number of I/O lines required from the host controller, simplifying PCB layout.
- Proven 12-Bit Accuracy: Provides 4096 levels of resolution, suitable for precise measurement and control applications.
Multi-Channel Data Acquisition Systems
The 11 input channels allow a single TLC2543MJB to digitize multiple analog signals, such as outputs from various sensors in an industrial monitoring system, simplifying the design and reducing component count.
Industrial Process Control
With a 66k SPS sampling rate and 12-bit resolution, it can accurately monitor and digitize control loop feedback signals like temperature, pressure, and flow in real-time, enabling precise adjustments in automated manufacturing.
Military and Aerospace Sensor Interfaces
The -55°C to 125°C temperature range and hermetic 20-CDIP package make it suitable for harsh environments, ensuring reliable digitization of critical flight or navigation sensor data.
Portable Instrumentation
The serial interface reduces the number of pins needed to connect to a processor, which is beneficial in space-constrained portable devices like handheld multimeters or data loggers that require multiple measurement inputs.
Automotive Test Equipment
Its ability to handle 11 channels makes it ideal for digitizing multiple simultaneous signals in engine test benches or vehicle diagnostics, providing the data needed for performance analysis and troubleshooting.
- Q: What type of ADC is the TLC2543MJB?
- A: The TLC2543MJB is a 12-bit successive approximation (SAR) analog-to-digital converter with a MUX-S/H-ADC architecture.
- Q: What is the resolution of the TLC2543MJB?
- A: It has a 12-bit resolution, providing 4096 discrete output levels.
- Q: What is the maximum sampling rate?
- A: The TLC2543MJB supports a sampling rate of 66k SPS (samples per second).
- Q: How many input channels does it have?
- A: It features 11 multiplexed analog input channels.
- Q: What interface does it use?
- A: It uses a serial interface for communication with microcontrollers or DSPs.
- Q: What is the operating temperature range?
- A: It operates over the military temperature range of -55°C to 125°C and comes in a 20-CDIP package.
