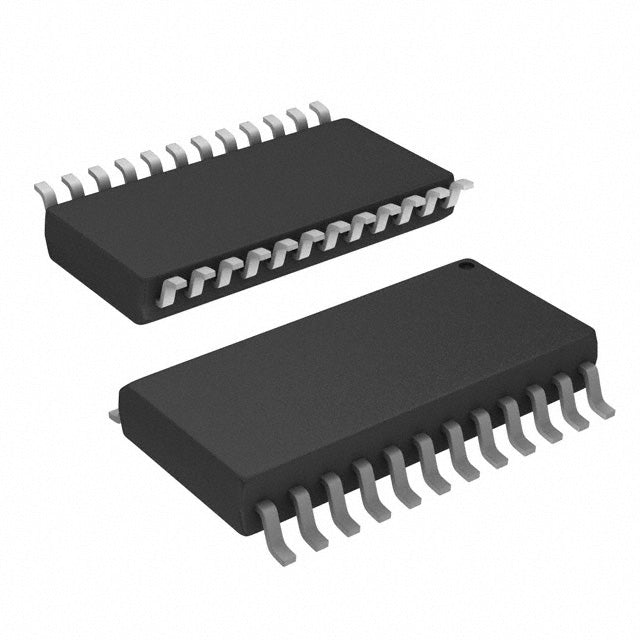

Texas Instruments TLC3578IDW
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $25.61 | $25.61 |
| 15+ | $24.80 | $372.00 |
| 25+ | $24.26 | $606.50 |
| 50+ | $22.92 | $1,146.00 |
| 100+ | $20.22 | $2,022.00 |
| N+ | $4.04 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Marketplace | Tube |
| Number of Bits | 14 |
| Sampling Rate (Per Second) | 200k |
| Number of Inputs | 4, 8 |
| Input Type | Pseudo-Differential, Single Ended |
| Data Interface | SPI |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 24-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 24-SOIC |
| ROHS |  |
The TLC3578IDW is a high-performance 14-bit analog-to-digital converter from Texas Instruments, designed for precision multi-channel data acquisition. Featuring a sampling rate of 200k SPS and support for up to 8 input channels, this ADC delivers accurate conversion of analog signals into digital data. Its SPI interface ensures easy integration with microcontrollers, while the external reference provides flexibility in scaling input ranges. Housed in a compact 24-SOIC package, the TLC3578IDW is ideal for industrial automation, medical instrumentation, and sensor monitoring applications.
- High Resolution: 14-bit resolution provides fine granularity for precise measurement of analog signals, reducing quantization error.
- Multi-Channel Flexibility: Supports 4 or 8 input channels, enabling multiplexed sampling of multiple sensors with a single ADC.
- Fast Sampling: 200k SPS sampling rate captures dynamic signals accurately, suitable for real-time monitoring.
- Easy Integration: SPI interface simplifies connection to digital systems, reducing design complexity.
- Wide Temperature Range: Operates from -40°C to 85°C, ensuring reliability in harsh industrial environments.
Multi-Channel Sensor Data Acquisition
The TLC3578IDW's 8 multiplexed input channels and 14-bit resolution make it ideal for digitizing multiple analog sensors in industrial data acquisition systems, ensuring accurate readings from temperature, pressure, and strain gauges.
Precision Industrial Automation
With a 200k SPS sampling rate and SPI interface, this ADC enables real-time monitoring and control in factory automation, converting analog process variables into digital data for PLCs and industrial controllers.
Portable Medical Instrumentation
The low-power operation and 14-bit precision of the TLC3578IDW support battery-powered medical devices such as patient monitors and diagnostic equipment, where accurate sensor signal digitization is critical.
Automotive Sensor Interfaces
Operating over -40°C to 85°C, this ADC is suitable for automotive applications like battery management systems and motor control, converting analog current and voltage signals with high fidelity.
Environmental Monitoring Systems
The multiple input channels allow simultaneous connection of various environmental sensors (e.g., humidity, gas, light), enabling comprehensive data logging and analysis in weather stations and air quality monitors.
- Q: What type of ADC is the TLC3578IDW?
- A: The TLC3578IDW is a 14-bit analog-to-digital converter with a MUX-S/H-ADC architecture, featuring an external reference.
- Q: What is the resolution of the TLC3578IDW?
- A: The TLC3578IDW offers 14-bit resolution, providing high-precision digital output for demanding measurement applications.
- Q: What is the sampling rate of the TLC3578IDW?
- A: The TLC3578IDW supports a sampling rate of 200k SPS (samples per second), suitable for moderate-speed data acquisition.
- Q: How many input channels does the TLC3578IDW have?
- A: This ADC provides 4 or 8 multiplexed input channels, allowing multiple analog signals to be digitized sequentially.
- Q: What digital interface does the TLC3578IDW use?
- A: It uses an SPI (Serial Peripheral Interface) for communication with microcontrollers and digital systems.
- Q: What is the package type for the TLC3578IDW?
- A: The TLC3578IDW comes in a 24-SOIC (0.295", 7.50mm Width) package, operating over -40°C to 85°C.
