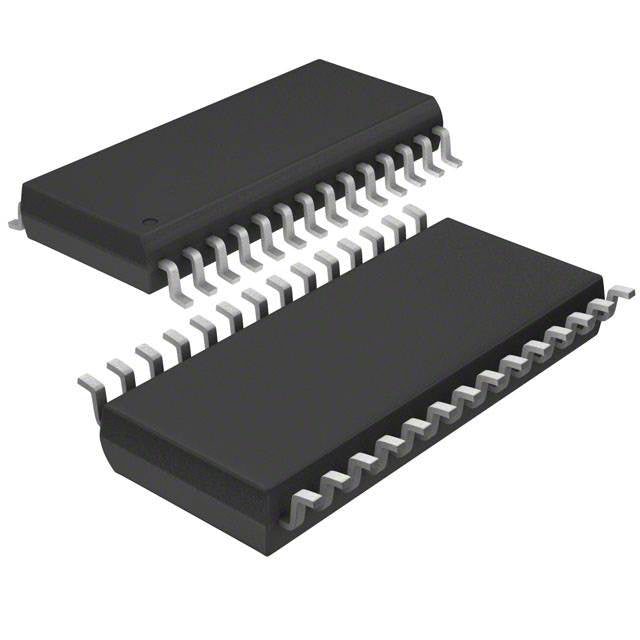

Texas Instruments TLV5580CPW
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $140.66 | $140.66 |
| 15+ | $32.35 | $485.25 |
| 25+ | $31.64 | $791.00 |
| 50+ | $29.89 | $1,494.50 |
| 100+ | $26.37 | $2,637.00 |
| N+ | $5.27 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Marketplace | Tube |
| Number of Bits | 8 |
| Sampling Rate (Per Second) | 80M |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | Pipelined |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 3V ~ 3.6V |
| Voltage - Supply, Digital | 3V ~ 3.6V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 28-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 28-TSSOP |
| ROHS |  |
The TLV5580CPW is a high-speed 8-bit analog-to-digital converter from Texas Instruments, designed for applications that require fast and accurate signal digitization. With a sampling rate of 80 MSPS and a single input channel, it delivers excellent performance for video, imaging, and communication systems. The parallel interface ensures efficient data transfer, while the S/H-ADC architecture guarantees reliable sampling. Its compact 28-TSSOP package makes it suitable for space-constrained designs.
- High-Speed Sampling: The 80 MSPS rate enables the digitization of fast analog signals for real-time processing.
- Flexible Reference Options: Supports both external and internal references, providing design flexibility.
- Compact TSSOP Package: The 28-TSSOP package is ideal for high-density PCB designs.
- Wide Operating Temperature: Operates from 0°C to 70°C, suitable for commercial applications.
Digital Oscilloscopes
The 80 MSPS sampling rate and 8-bit resolution make the TLV5580CPW ideal for entry-level digital oscilloscopes, allowing for the capture and analysis of moderate-speed signals.
Set-Top Boxes and TV Tuners
In consumer electronics, this ADC can digitize analog TV signals or cable signals, enabling digital processing and demodulation in set-top boxes.
Industrial Imaging
For machine vision systems, the high speed of this ADC supports the digitization of line-scan camera outputs, facilitating high-throughput inspection on production lines.
Communications Infrastructure
In wireless base stations, this ADC can be used for digitizing IF signals, providing a cost-effective solution for signal processing in communication systems.
Test Equipment
Its speed and parallel interface make it suitable for various test and measurement instruments, including spectrum analyzers and signal generators.
- Q: What is the resolution of the TLV5580CPW?
- A: The TLV5580CPW is an 8-bit analog-to-digital converter.
- Q: What is the sampling rate?
- A: It has a sampling rate of 80 MSPS (mega samples per second).
- Q: How many channels does it have?
- A: This ADC has a single (1) input channel.
- Q: What interface does it use?
- A: It uses a parallel interface.
- Q: What is the architecture?
- A: It uses a sample-and-hold (S/H) ADC architecture.
- Q: What is the package type?
- A: It is available in a 28-TSSOP package.
