Analog Devices Inc./Maxim Integrated TMC2160-TA
Regular price
$4.49
Regular price
$4.73
Sale price
$4.49
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $4.49 | $4.49 |
| 15+ | $4.35 | $65.25 |
| 25+ | $4.26 | $106.50 |
| 50+ | $4.02 | $201.00 |
| 100+ | $3.55 | $355.00 |
| N+ | $0.71 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | stallGuard™ |
| Packaging | Tray | |
| Part Status | Obsolete |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | - |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (4) |
| Interface | SPI, Step/Direction |
| Technology | Power MOSFET |
| Step Resolution | 1 ~ 1/256 |
| Applications | Automation, Industrial, Multipurpose |
| Current - Output | 20A |
| Voltage - Supply | 10V ~ 50V |
| Voltage - Load | 10V ~ 55V |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

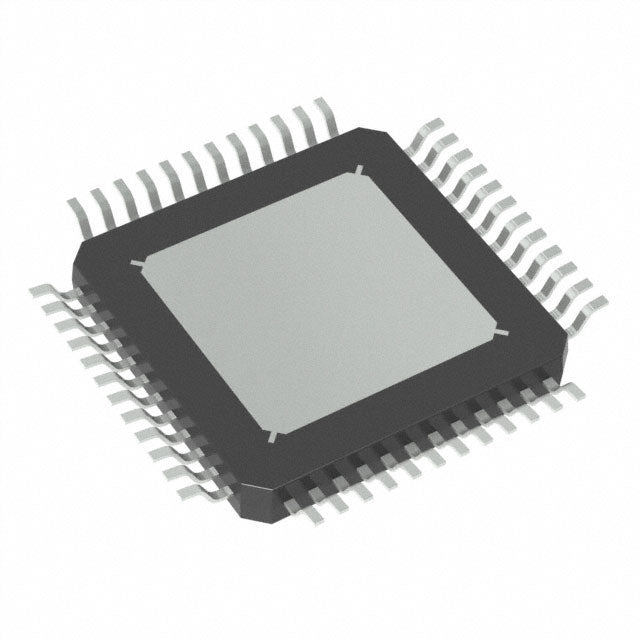

| Package / Case | 48-TQFP Exposed Pad |
| Supplier Device Package / Case | 48-TQFP-EP (7x7) |
| ROHS |  |
TMC2160-TA.pdf
×
