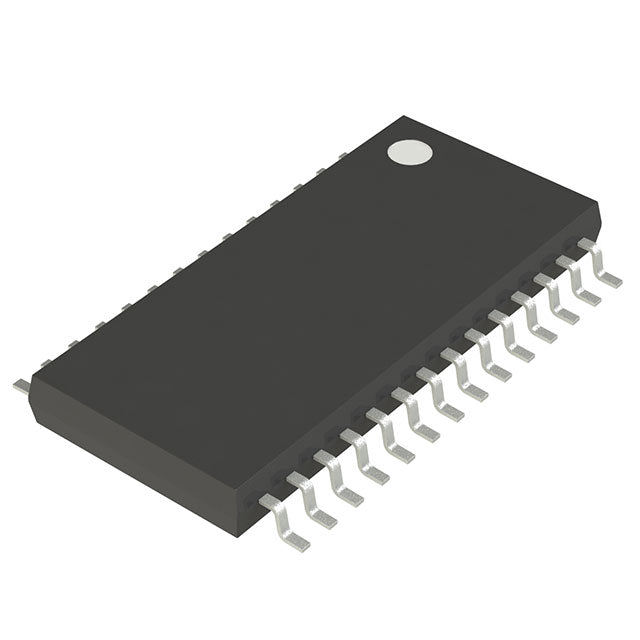

Analog Devices Inc./Maxim Integrated TMC2225-SA-T
Regular price
$5.24
Regular price
$5.52
Sale price
$5.24
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $5.24 | $5.24 |
| 15+ | $5.08 | $76.20 |
| 25+ | $4.97 | $124.25 |
| 50+ | $4.69 | $234.50 |
| 100+ | $4.14 | $414.00 |
| N+ | $0.83 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Tape & Reel (TR) | Cut Tape (CT) |
| Part Status | Active |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | Universal |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | SPI, Step/Direction |
| Interface | SPI, Step/Direction, UART |
| Technology | Power MOSFET |
| Step Resolution | >256 Microsteps |
| Applications | General Purpose |
| Current - Output | 2A |
| Voltage - Supply | 3V ~ 5.25V |
| Voltage - Load | 5.5V ~ 36V |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 28-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package / Case | 28-HTSSOP |
| ROHS |  |
TMC2225-SA-T.pdf
×
