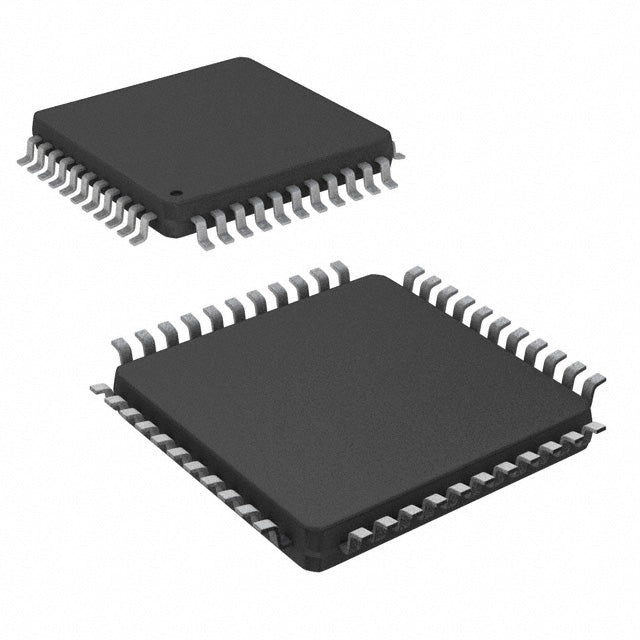

Analog Devices Inc./Maxim Integrated TMC246B-PA-T
Regular price
$16.44
Regular price
$17.31
Sale price
$16.44
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $16.44 | $16.44 |
| 15+ | $15.93 | $238.95 |
| 25+ | $15.58 | $389.50 |
| 50+ | $14.71 | $735.50 |
| 100+ | $12.98 | $1,298.00 |
| N+ | $2.60 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | stallGuard™ |
| Packaging | Tape & Reel (TR) | Cut Tape (CT) |
| Part Status | Active |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | - |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (4) |
| Interface | SPI |
| Technology | HVCMOS |
| Step Resolution | 1, 1/2, 1/4, 1/8, 1/16 |
| Applications | General Purpose |
| Current - Output | 1.5A |
| Voltage - Supply | 3V ~ 5.5V |
| Voltage - Load | 7V ~ 34V |
| Operating Temperature | -40°C ~ 140°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 44-LQFP |
| Supplier Device Package / Case | 44-PQFP (10x10) |
| ROHS |  |
TMC246B-PA-T.pdf
×
