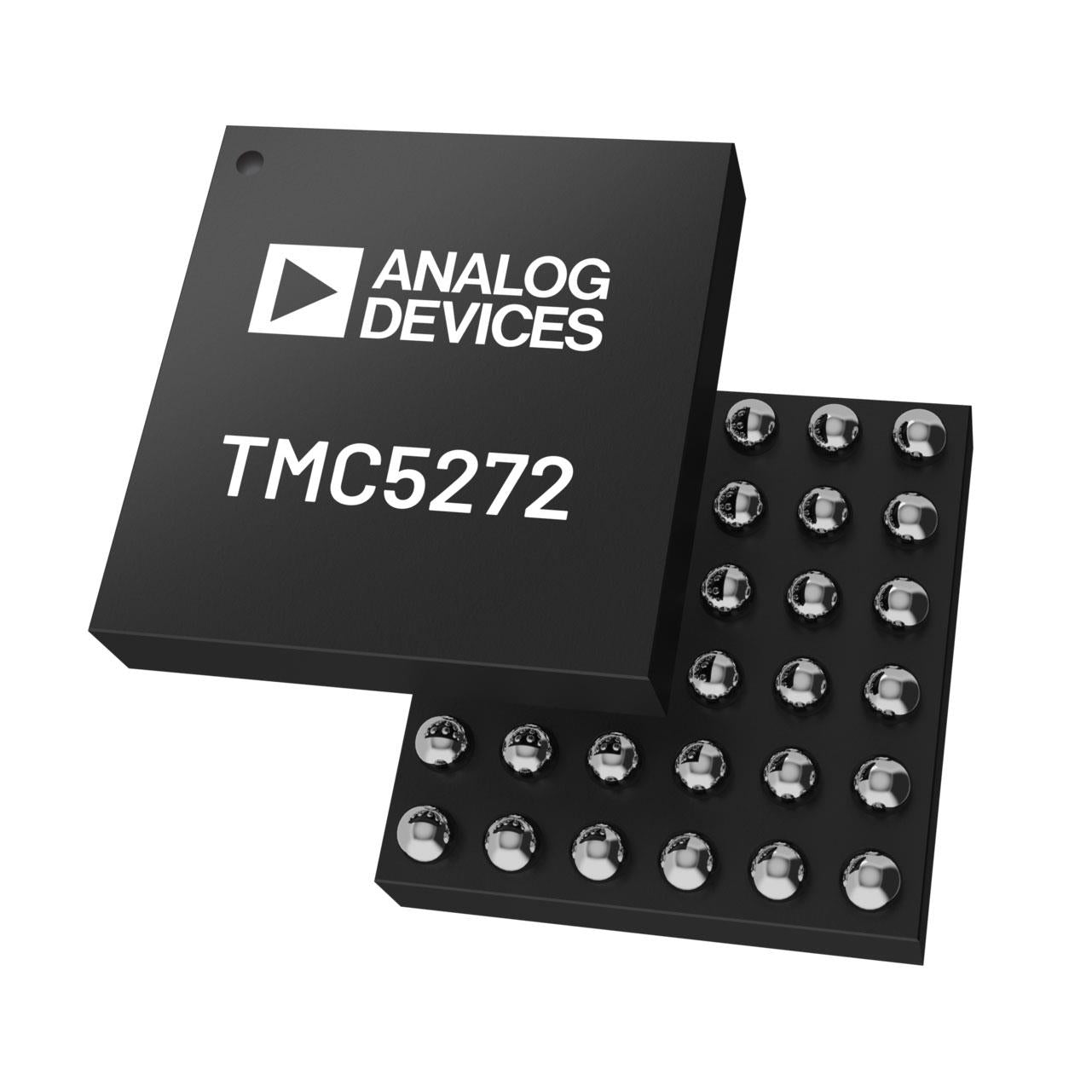

Analog Devices Inc./Maxim Integrated TMC5272AWX+T
Regular price
$10.06
Regular price
$10.59
Sale price
$10.06
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $10.06 | $10.06 |
| 15+ | $9.74 | $146.10 |
| 25+ | $9.53 | $238.25 |
| 50+ | $9.00 | $450.00 |
| 100+ | $7.94 | $794.00 |
| N+ | $1.59 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Tape & Reel (TR) | Cut Tape (CT) |
| Part Status | Active |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | - |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (4) |
| Interface | SPI, Step/Direction, UART |
| Technology | Power MOSFET |
| Step Resolution | - |
| Applications | General Purpose |
| Current - Output | 800mA |
| Voltage - Supply | - |
| Voltage - Load | 2.1V ~ 20V |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 36-WFBGA, WLBGA |
| Supplier Device Package / Case | 36-WLP (2.97x3.13) |
| ROHS |  |
TMC5272AWX+T.pdf
×
