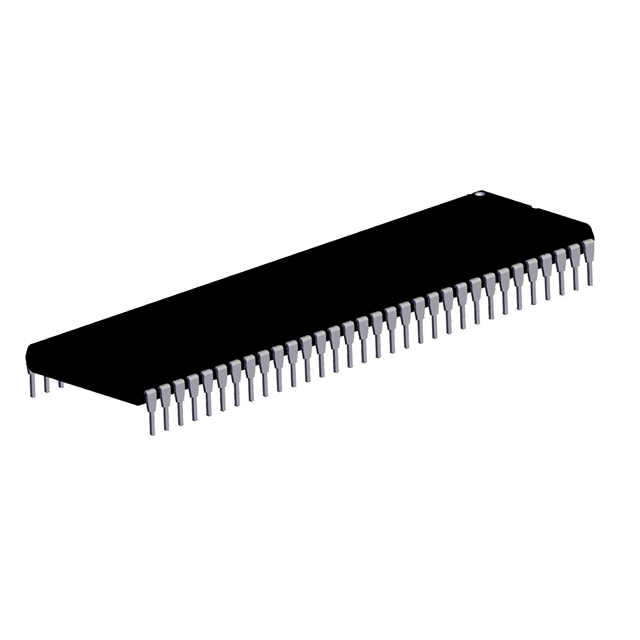

Texas Instruments TMS370C758BNMT
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $27.64 | $27.64 |
| 15+ | $26.76 | $401.40 |
| 25+ | $26.18 | $654.50 |
| 50+ | $24.73 | $1,236.50 |
| 100+ | $21.82 | $2,182.00 |
| N+ | $4.36 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | TMS370 |
| Packaging | Bulk | Bulk |
| Core Processor | TMS370 |
| Core Size | 8-Bit |
| Speed | 5MHz |
| Connectivity | SCI, SPI |
| Peripherals | PWM, WDT |
| Number of I/O | 44 |
| Program Memory Size | 32KB (32K x 8) |
| Program Memory Type | OTP |
| EEPROM Size | 256 x 8 |
| RAM Size | 1K x 8 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Data Converters | A/D 8x8b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Supplier Device Package | 64-DIP |
| Package / Case | 64-DIP (0.750", 19.05mm) |
The TMS370C758BNMT is a classic 8-bit microcontroller from Texas Instruments, based on the TMS370 core. It operates at 5MHz with 32KB flash and 1KB RAM. Designed for 5V systems, it includes PWM and WDT peripherals. The 64-DIP package is suitable for through-hole assembly and legacy designs requiring simple, reliable control.
- Simple 8-bit architecture: Easy to program and debug.
- 5V operation: Compatible with legacy logic and sensors.
- DIP package: Ideal for prototyping and through-hole manufacturing.
- Integrated PWM and WDT: Reduces external component count.
- Proven reliability: Suitable for long-life industrial applications.
Legacy Automotive Controllers
For systems requiring simple, reliable 5V logic with PWM for actuator control in classic vehicles.
Simple Industrial Timers
The 5MHz core and WDT provide a cost-effective solution for basic timing and sequencing tasks.
White Goods Appliances
DIP package allows for easy prototyping and through-hole manufacturing for low-cost appliances.
Educational Kits
Simple architecture and DIP package make it ideal for teaching fundamental MCU concepts.
Retro Computing Interfaces
5V logic and PWM can be used to interface with legacy peripherals.
Battery Chargers
Basic PWM control for simple charging algorithms in low-cost chargers.
- Q: What is the core architecture?
- A: It uses the proprietary TMS370 8-bit core.
- Q: What is the clock speed?
- A: The maximum speed is 5MHz.
- Q: What is the supply voltage?
- A: It requires 4.5V to 5.5V.
- Q: How much memory does it have?
- A: It has 32KB flash and 1KB RAM.
- Q: What package is available?
- A: It comes in a 64-DIP package.
