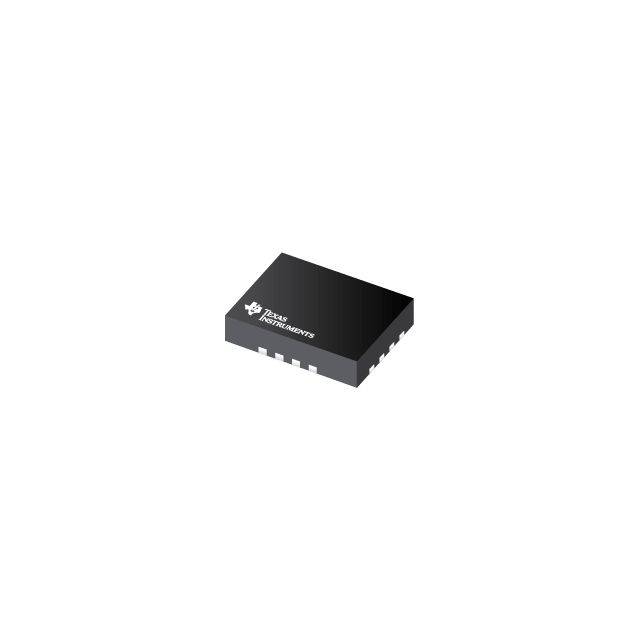

Texas Instruments TMUX1108RSVR
Regular price
$3.16
Regular price
$3.33
Sale price
$3.16
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $3.16 | $3.16 |
| 15+ | $3.06 | $45.90 |
| 25+ | $3.00 | $75.00 |
| 50+ | $2.83 | $141.50 |
| 100+ | $2.50 | $250.00 |
| N+ | $0.50 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Switch Circuit | SP8T |
| Multiplexer/Demultiplexer Circuit | 8:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 4Ohm |
| Channel-to-Channel Matching (ΔRon) | 130mOhm |
| Voltage - Supply, Single (V+) | 1.08V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 12ns, 6ns (Typ) |
| -3db Bandwidth | 90MHz |
| Charge Injection | -1pC |
| Channel Capacitance (CS(off), CD(off)) | 7pF, 60pF |
| Current - Leakage (IS(off)) (Max) | 80pA |
| Crosstalk | -65dB ~ -45dB @ 1MHz ~ 10MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-UFQFN |
| Supplier Device Package | 16-UFQFN |
| ROHS |  |
No datasheet available. Please contact sales@hqickey.com for the latest datasheet.
×
