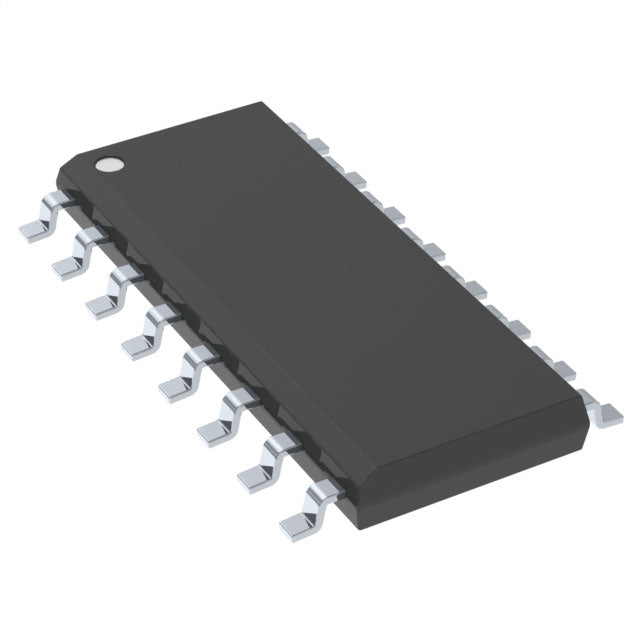

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Texas Instruments
TMUX4053DYYR
TMUX4053DYYR
Regular price
Dhs. 1.31
Regular price
Dhs. 1.39
Sale price
Dhs. 1.31
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 1.31 AED | Dhs. 1.31 AED |
| 15+ | Dhs. 1.28 AED | Dhs. 19.20 AED |
| 25+ | Dhs. 1.25 AED | Dhs. 31.25 AED |
| 50+ | Dhs. 1.18 AED | Dhs. 59.00 AED |
| 100+ | Dhs. 1.04 AED | Dhs. 104.00 AED |
| N+ | Dhs. 0.21 AED | Price Inquiry |
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Apply for PCBA engineering assistance
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Switch Circuit | SPDT - Open/Closed |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 3 |
| On-State Resistance (Max) | 240Ohm |
| Channel-to-Channel Matching (ΔRon) | 2Ohm |
| Voltage - Supply, Single (V+) | 5V ~ 24V |
| Voltage - Supply, Dual (V±) | ±12V |
| Switch Time (Ton, Toff) (Max) | 110ns, 85ns (Typ) |
| -3db Bandwidth | 850MHz |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 3pF, 3pF |
| Current - Leakage (IS(off)) (Max) | 100nA |
| Crosstalk | -90dB @ 1MHz |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-16 Thin, SOT-23 Variant |
| Supplier Device Package | SOT-23-16 Thin, SOT-23 Variant |
Datasheets:
TMUX4053DYYR
.pdf
×
