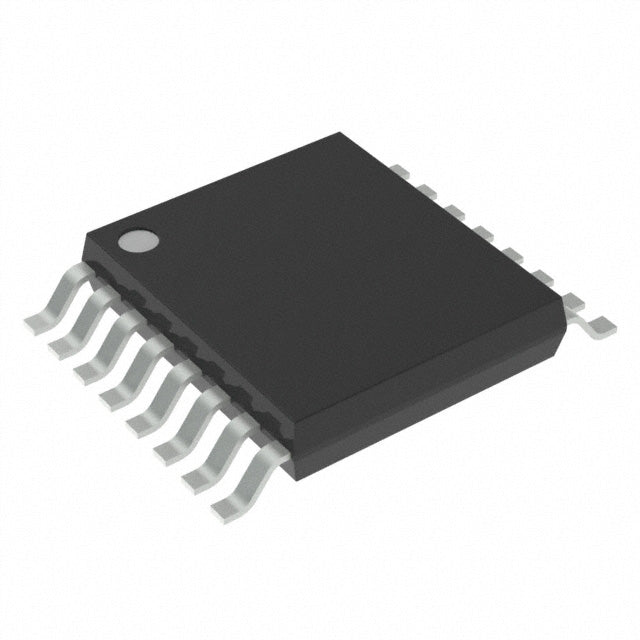

Texas Instruments TMUX6213PWR
Regular price
$5.07
Regular price
$5.34
Sale price
$5.07
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $5.07 | $5.07 |
| 15+ | $4.91 | $73.65 |
| 25+ | $4.81 | $120.25 |
| 50+ | $4.54 | $227.00 |
| 100+ | $4.01 | $401.00 |
| N+ | $0.80 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Switch Circuit | SPST - NO/NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 3.1Ohm |
| Channel-to-Channel Matching (ΔRon) | 100mOhm |
| Voltage - Supply, Single (V+) | 4.5V ~ 36V |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 18V |
| Switch Time (Ton, Toff) (Max) | 180ns, 200ns |
| -3db Bandwidth | 50MHz |
| Charge Injection | 78pC |
| Channel Capacitance (CS(off), CD(off)) | 28pF, 45pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | -93dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-TSSOP (0.173", 4.40mm Width) |
| ROHS |  |
TMUX6213PWR.pdf
×
