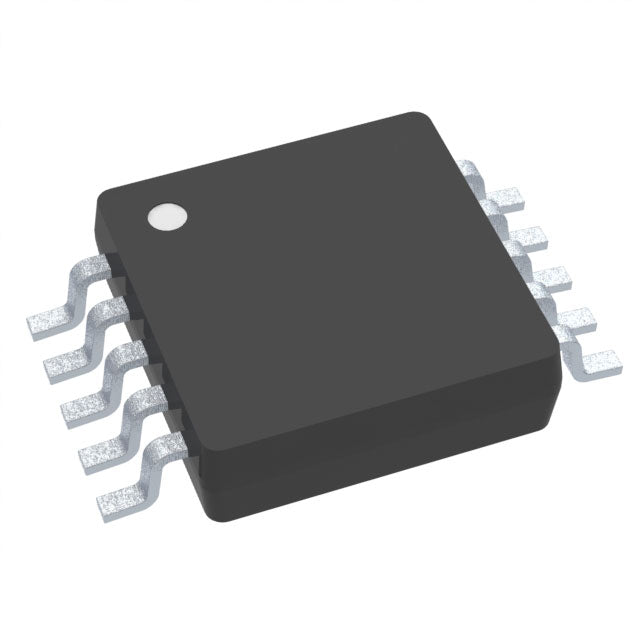

Texas Instruments TMUX6221DGSR
Regular price
$8.77
Regular price
$2.19
Sale price
$8.77
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $8.77 | $8.77 |
| 15+ | $2.01 | $30.15 |
| 25+ | $1.97 | $49.25 |
| 50+ | $1.86 | $93.00 |
| 100+ | $1.64 | $164.00 |
| N+ | $0.33 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 3.2Ohm |
| Channel-to-Channel Matching (ΔRon) | 100mOhm |
| Voltage - Supply, Single (V+) | 4.5V ~ 36V |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 18V |
| Switch Time (Ton, Toff) (Max) | 180ns, 180ns |
| -3db Bandwidth | 45MHz |
| Charge Injection | -13pC |
| Channel Capacitance (CS(off), CD(off)) | 26pF, 35pF |
| Current - Leakage (IS(off)) (Max) | 250pA |
| Crosstalk | -93dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| ROHS |  |
TMUX6221DGSR.pdf
×
