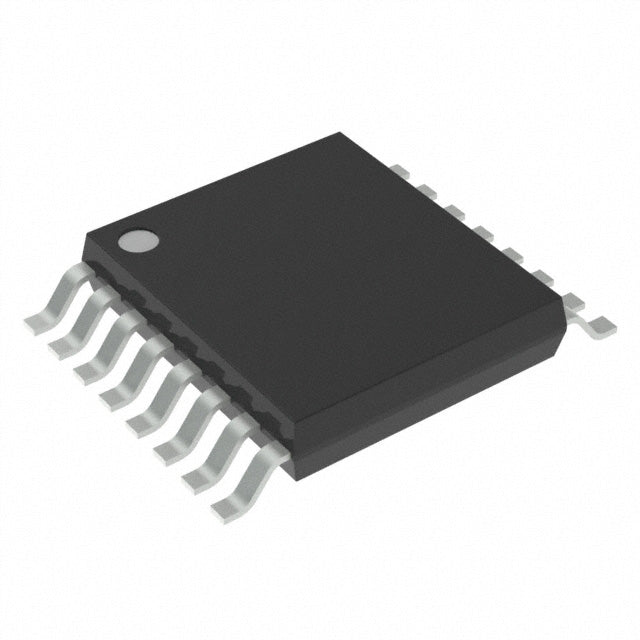

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Texas Instruments
TMUX7209PWR
TMUX7209PWR
Regular price
Dhs. 21.73
Regular price
Dhs. 22.89
Sale price
Dhs. 21.73
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 21.73 AED | Dhs. 21.73 AED |
| 15+ | Dhs. 21.06 AED | Dhs. 315.90 AED |
| 25+ | Dhs. 20.60 AED | Dhs. 515.00 AED |
| 50+ | Dhs. 19.46 AED | Dhs. 973.00 AED |
| 100+ | Dhs. 17.17 AED | Dhs. 1,717.00 AED |
| N+ | Dhs. 3.43 AED | Price Inquiry |
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Apply for PCBA engineering assistance
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Switch Circuit | 4PST - NO |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 5.5Ohm |
| Channel-to-Channel Matching (ΔRon) | 700mOhm |
| Voltage - Supply, Single (V+) | 4.5V ~ 44V |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 22V |
| Switch Time (Ton, Toff) (Max) | 205ns, 300ns |
| -3db Bandwidth | 51MHz |
| Charge Injection | -5pC |
| Channel Capacitance (CS(off), CD(off)) | 15pF, 67pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | -85dB @ 100kHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-TSSOP (0.173", 4.40mm Width) |
Datasheets:
TMUX7209PWR
.pdf
×
