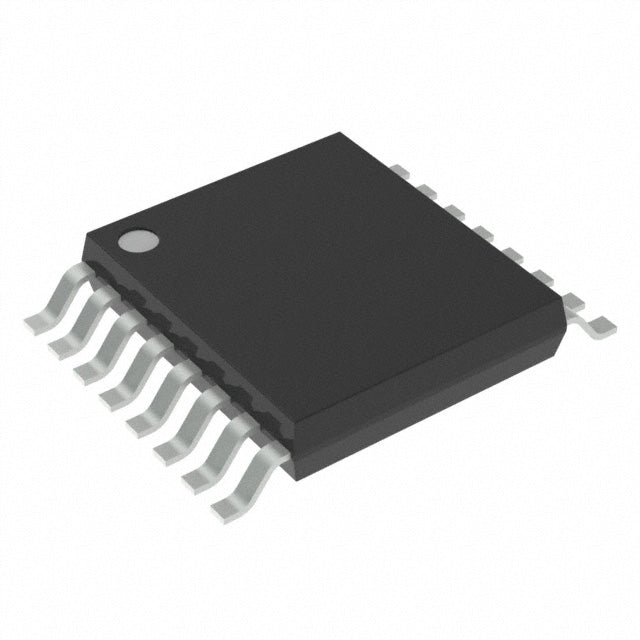

Texas Instruments TMUX7212MPWR
Regular price
$33.16
Regular price
$8.29
Sale price
$33.16
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $33.16 | $33.16 |
| 15+ | $7.63 | $114.45 |
| 25+ | $7.46 | $186.50 |
| 50+ | $7.05 | $352.50 |
| 100+ | $6.22 | $622.00 |
| N+ | $1.24 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Switch Circuit | SPST - Closed |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 2.4Ohm |
| Channel-to-Channel Matching (ΔRon) | 100mOhm |
| Voltage - Supply, Single (V+) | 4.5V ~ 44V |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 22V |
| Switch Time (Ton, Toff) (Max) | 185ns, 205ns |
| -3db Bandwidth | 46MHz |
| Charge Injection | 104pC |
| Channel Capacitance (CS(off), CD(off)) | 28pF, 45pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | -93dB @ 1MHz |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-TSSOP (0.173", 4.40mm Width) |
TMUX7212MPWR.pdf
×
