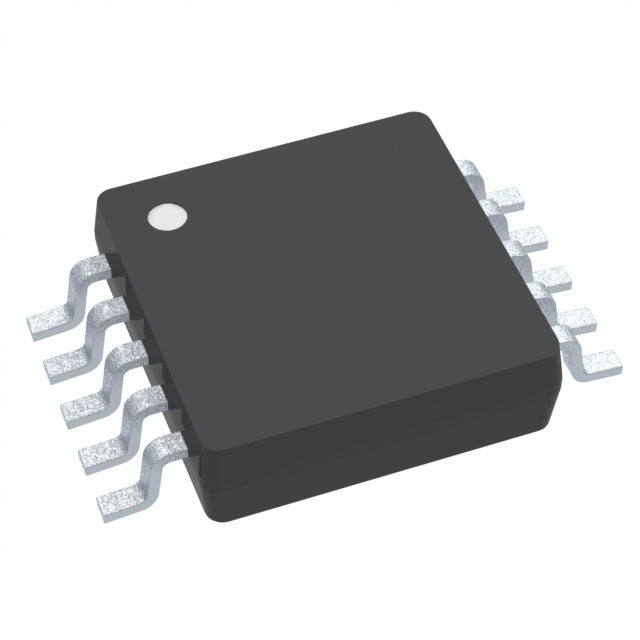

Texas Instruments TMUX7222DGSR
Regular price
$4.17
Regular price
$4.39
Sale price
$4.17
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $4.17 | $4.17 |
| 15+ | $4.04 | $60.60 |
| 25+ | $3.95 | $98.75 |
| 50+ | $3.73 | $186.50 |
| 100+ | $3.29 | $329.00 |
| N+ | $0.66 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 2.8Ohm |
| Channel-to-Channel Matching (ΔRon) | 100mOhm |
| Voltage - Supply, Single (V+) | 4.5V ~ 44V |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 22V |
| Switch Time (Ton, Toff) (Max) | 168ns, 180ns |
| -3db Bandwidth | 62MHz |
| Charge Injection | -16pC |
| Channel Capacitance (CS(off), CD(off)) | 34pF, 34pF |
| Current - Leakage (IS(off)) (Max) | 5nA |
| Crosstalk | -93dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| ROHS |  |
TMUX7222DGSR.pdf
×
