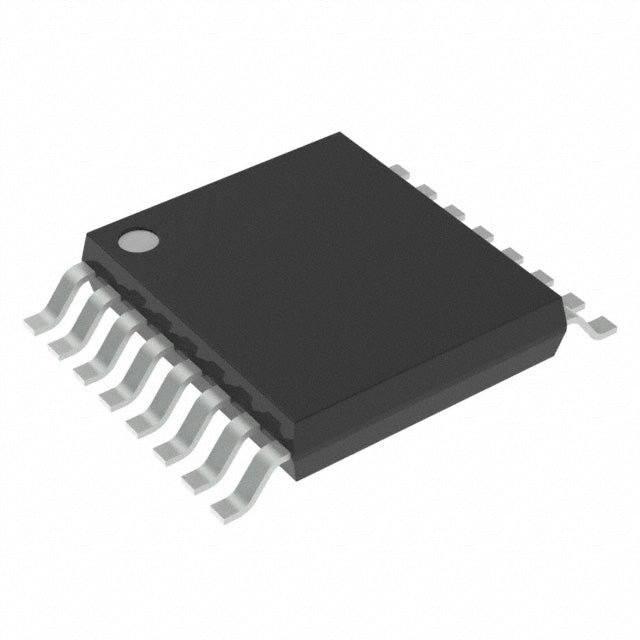

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Texas Instruments
TMUX7236PWR
TMUX7236PWR
Regular price
Dhs. 20.49
Regular price
Dhs. 21.58
Sale price
Dhs. 20.49
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 20.49 AED | Dhs. 20.49 AED |
| 15+ | Dhs. 19.85 AED | Dhs. 297.75 AED |
| 25+ | Dhs. 19.42 AED | Dhs. 485.50 AED |
| 50+ | Dhs. 18.34 AED | Dhs. 917.00 AED |
| 100+ | Dhs. 16.19 AED | Dhs. 1,619.00 AED |
| N+ | Dhs. 3.24 AED | Price Inquiry |
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Apply for PCBA engineering assistance
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Switch Circuit | SPDT - Open/Closed |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 2.4Ohm |
| Channel-to-Channel Matching (ΔRon) | 100mOhm |
| Voltage - Supply, Single (V+) | 4.5V ~ 44V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 130ns, 160ns |
| -3db Bandwidth | 35MHz |
| Charge Injection | 104pC |
| Channel Capacitance (CS(off), CD(off)) | 45pF, 55pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | -93dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-TSSOP (0.173", 4.40mm Width) |
| ROHS |  |
Datasheets:
TMUX7236PWR
.pdf
×
