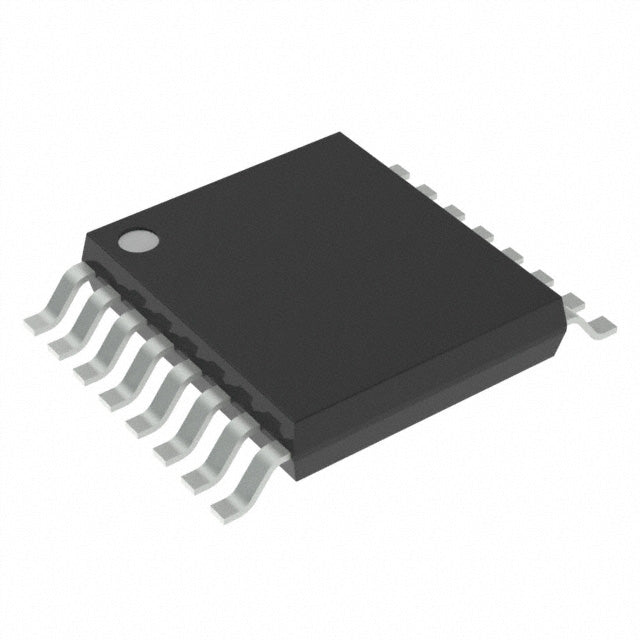

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Texas Instruments
TMUX7309FPWR
TMUX7309FPWR
Regular price
Dhs. 34.35
Regular price
Dhs. 36.15
Sale price
Dhs. 34.35
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 34.35 AED | Dhs. 34.35 AED |
| 15+ | Dhs. 33.26 AED | Dhs. 498.90 AED |
| 25+ | Dhs. 32.54 AED | Dhs. 813.50 AED |
| 50+ | Dhs. 30.73 AED | Dhs. 1,536.50 AED |
| 100+ | Dhs. 27.11 AED | Dhs. 2,711.00 AED |
| N+ | Dhs. 5.42 AED | Price Inquiry |
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Apply for PCBA engineering assistance
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Switch Circuit | SP4T - Open |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 250Ohm |
| Channel-to-Channel Matching (ΔRon) | 2.5Ohm |
| Voltage - Supply, Single (V+) | 5V ~ 44V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 300ns, 400ns |
| -3db Bandwidth | 245MHz |
| Charge Injection | -17pC |
| Channel Capacitance (CS(off), CD(off)) | 3.5pF, 14pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | -103dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-TSSOP (0.173", 4.40mm Width) |
| ROHS |  |
Datasheets:
TMUX7309FPWR
.pdf
×
