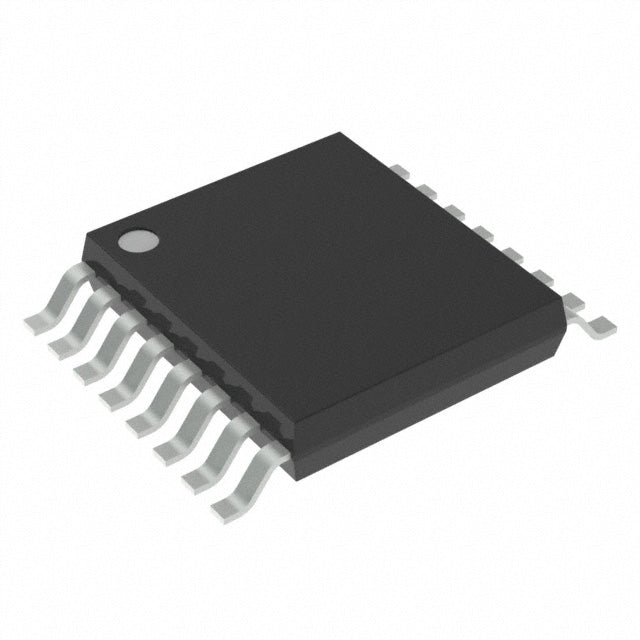

Texas Instruments TMUX8109RPWR
Regular price
Dhs. 21.17
Regular price
Dhs. 22.29
Sale price
Dhs. 21.17
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 21.17 | Dhs. 21.17 |
| 15+ | Dhs. 20.51 | Dhs. 307.65 |
| 25+ | Dhs. 20.06 | Dhs. 501.50 |
| 50+ | Dhs. 18.95 | Dhs. 947.50 |
| 100+ | Dhs. 16.72 | Dhs. 1,672.00 |
| N+ | Dhs. 3.34 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | TMUX810x |
| Packaging | Tape & Reel (TR)| |
| Switch Circuit | SP4T - Open |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 48Ohm |
| Channel-to-Channel Matching (ΔRon) | 650mOhm |
| Voltage - Supply, Single (V+) | 10V ~ 100V |
| Voltage - Supply, Dual (V±) | ±10V ~ 50V |
| Switch Time (Ton, Toff) (Max) | 3µs, 650ns (Typ) |
| -3db Bandwidth | 380MHz |
| Charge Injection | -150pC |
| Channel Capacitance (CS(off), CD(off)) | 3pF, 10pF |
| Current - Leakage (IS(off)) (Max) | 3nA |
| Crosstalk | -110dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-TSSOP |
TMUX8109RPWR.pdf
×
