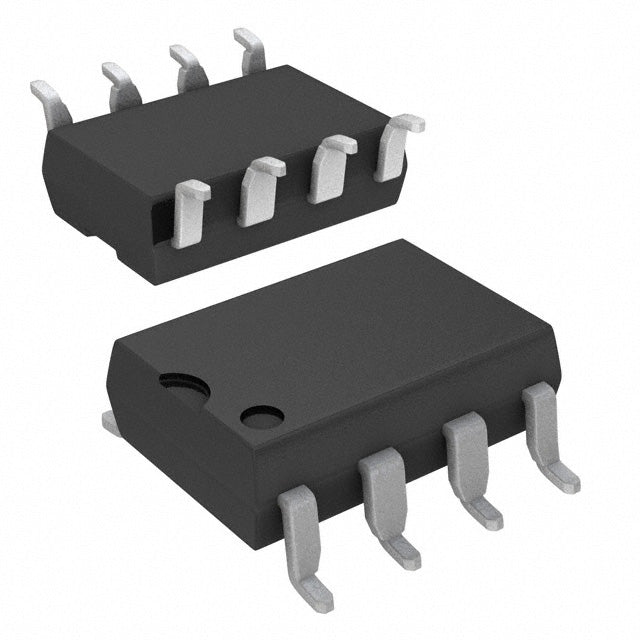

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
TNY255GN
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,892.34 AED | Dhs. 355,892.34 AED |
| 15+ | Dhs. 344,653.64 AED | Dhs. 5,169,804.60 AED |
| 25+ | Dhs. 337,161.17 AED | Dhs. 8,429,029.25 AED |
| 50+ | Dhs. 318,429.99 AED | Dhs. 15,921,499.50 AED |
| 100+ | Dhs. 280,967.64 AED | Dhs. 28,096,764.00 AED |
| N+ | Dhs. 56,193.53 AED | Price Inquiry |
Couldn't load pickup availability
TNY255GN - TinySwitch® Offline Switching IC
The TNY255GN from Power Integrations is a high-performance offline switching IC designed for compact, energy-efficient AC-DC power conversion applications. Part of the renowned TinySwitch® family, this integrated switcher combines a 700V power MOSFET with advanced control circuitry in a space-saving 8-SMD surface mount package.
Key Features & Benefits
- Integrated Design: Built-in 700V power MOSFET eliminates external switching components
- High Efficiency: 130kHz switching frequency with 67% duty cycle for optimal performance
- Robust Protection: Current limiting and over-temperature fault protection ensure reliable operation
- Wide Operating Range: -40°C to 150°C junction temperature for demanding environments
- Compact Footprint: 8-SMD gull wing package ideal for space-constrained designs
- Isolated Flyback Topology: Perfect for universal input offline power supplies up to 6.5W
Typical Applications
- Cell phone chargers and USB power adapters
- Standby power supplies for consumer electronics
- LED lighting drivers
- Smart home and IoT device power supplies
- Industrial control and instrumentation
Why Choose TNY255GN?
The TNY255GN offers exceptional value for engineers seeking a reliable, cost-effective solution for low-power AC-DC conversion. Its integrated design reduces component count, simplifies PCB layout, and accelerates time-to-market. With Power Integrations' proven track record in power conversion technology and comprehensive technical support, the TNY255GN is the smart choice for your next design.
RoHS Compliant - Environmentally friendly and ready for global markets.
Related Resources & Product Categories
Explore more power conversion solutions and technical resources:
- AC DC Converters, Offline Switchers - Browse our complete selection of AC-DC conversion ICs and offline switching regulators
- HQICKEY Home - Discover our full range of semiconductors, programmable logic, and electronic components
- Technical Blog & News - Read application notes, design guides, and the latest industry insights
| Product attributes | Property Value |
| Manufacturer | Power Integrations |
| Product Series | TinySwitch® |
| Packaging | | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Topology | Flyback |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | - |
| Duty Cycle | 67% |
| Frequency - Switching | 130kHz |
| Power (Watts) | 6.5 W |
| Fault Protection | Current Limiting, Over Temperature |
| Control Features | EN |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD, Gull Wing |
| Supplier Device Package | 8-SMD |
| ROHS |  |
TNY255GN.pdf
