TNY256PN
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,916.57 AED | Dhs. 355,916.57 AED |
| 15+ | Dhs. 344,677.10 AED | Dhs. 5,170,156.50 AED |
| 25+ | Dhs. 337,184.12 AED | Dhs. 8,429,603.00 AED |
| 50+ | Dhs. 318,451.67 AED | Dhs. 15,922,583.50 AED |
| 100+ | Dhs. 280,986.77 AED | Dhs. 28,098,677.00 AED |
| N+ | Dhs. 56,197.35 AED | Price Inquiry |
Couldn't load pickup availability

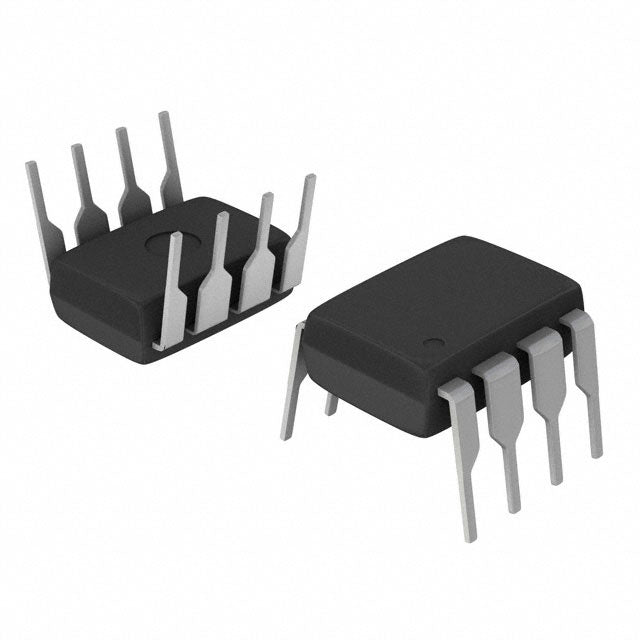

TNY256PN Offline Switcher IC - TinySwitch Plus Series
The TNY256PN from Power Integrations is a high-performance offline switcher IC designed for compact, cost-effective AC-DC power supply applications. Part of the renowned TinySwitch Plus family, this integrated circuit combines a 700V power MOSFET, oscillator, high-voltage switched current source, current limit, and thermal shutdown circuitry on a single monolithic device.
Key Features & Benefits
- Integrated Design: Reduces component count and simplifies PCB layout with built-in 700V MOSFET
- 10W Power Output: Ideal for low to medium power applications including adapters, chargers, and auxiliary supplies
- Advanced Protection: Current limiting and over-temperature protection ensure reliable operation and extended product life
- High Efficiency: 130kHz switching frequency optimizes transformer size while maintaining excellent performance
- Wide Operating Range: Functions reliably from -40°C to 150°C junction temperature
- Easy Implementation: Through-hole 8-DIP package simplifies prototyping and manufacturing
Typical Applications
The TNY256PN is perfectly suited for cell phone chargers, standby supplies, adapter/chargers for portable equipment, auxiliary power supplies in appliances, and low-power offline flyback converters.
Why Choose TNY256PN?
Power Integrations' TinySwitch Plus series represents decades of innovation in power conversion technology. The TNY256PN delivers exceptional reliability, simplified design, and cost-effective performance for your AC-DC power supply needs. With comprehensive built-in protection features and proven field reliability, this IC reduces development time and ensures long-term product success.
Genuine Power Integrations components with full traceability and manufacturer support.
Related Products & Resources
Explore our complete range of AC DC Converters, Offline Switchers for your power conversion needs. Browse thousands of genuine semiconductor components at HQICKEY, your trusted source for programmable logic and power management solutions. For technical insights, design guides, and industry updates, visit our Technical Blog.
| Product attributes | Property Value |
| Manufacturer | Power Integrations |
| Product Series | TinySwitch® Plus |
| Packaging | | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Topology | Flyback |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | - |
| Duty Cycle | 66% |
| Frequency - Switching | 130kHz |
| Power (Watts) | 10 W |
| Fault Protection | Current Limiting, Over Temperature |
| Control Features | EN |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-PDIP |
