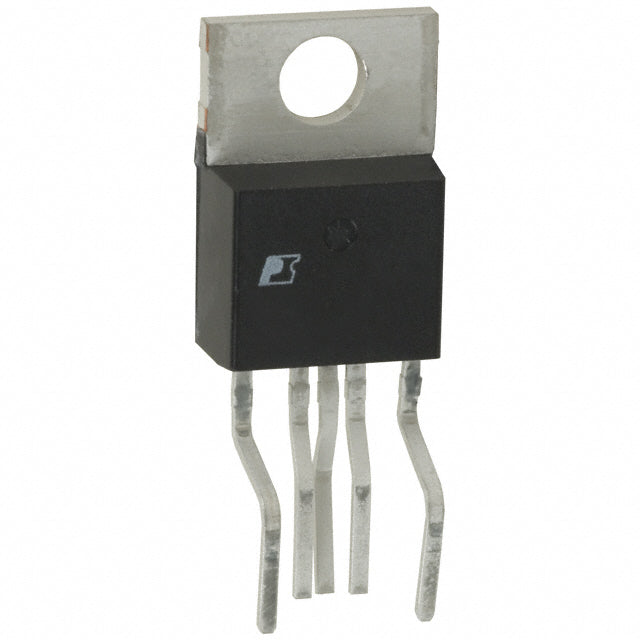

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
TNY256Y
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,916.57 AED | Dhs. 355,916.57 AED |
| 15+ | Dhs. 344,677.10 AED | Dhs. 5,170,156.50 AED |
| 25+ | Dhs. 337,184.12 AED | Dhs. 8,429,603.00 AED |
| 50+ | Dhs. 318,451.67 AED | Dhs. 15,922,583.50 AED |
| 100+ | Dhs. 280,986.77 AED | Dhs. 28,098,677.00 AED |
| N+ | Dhs. 56,197.35 AED | Price Inquiry |
Couldn't load pickup availability
TNY256Y - TinySwitch® Plus Offline Switcher IC
The TNY256Y from Power Integrations is a high-performance integrated offline switcher designed for cost-effective, space-saving AC-DC power supply applications up to 11W. Part of the renowned TinySwitch® Plus family, this IC combines a 700V power MOSFET, oscillator, high-voltage switched current source, current limit, and thermal shutdown circuitry in a compact TO-220-7B package.
Key Features & Benefits
- Integrated Design: Built-in 700V MOSFET eliminates external switching components
- 11W Output Power: Ideal for low-power consumer electronics, appliances, and industrial controls
- Flyback Topology: Proven isolated design for safe, efficient power conversion
- Advanced Protection: Current limiting and over-temperature shutdown ensure reliable operation
- Wide Operating Range: Functions from -40°C to 150°C junction temperature
- High Efficiency: 130kHz switching frequency with 66% duty cycle maximizes performance
- Through-Hole Mounting: Easy assembly and robust mechanical connection
Typical Applications
- Cell phone chargers and USB power adapters
- Standby power supplies for appliances
- Auxiliary power for industrial equipment
- LED driver circuits
- Smart home devices and IoT applications
Why Choose TNY256Y?
The TNY256Y offers exceptional value for engineers seeking a reliable, cost-effective solution for low-power AC-DC conversion. Its integrated design reduces component count, simplifies PCB layout, and improves overall system reliability. With Power Integrations' proven track record in power management ICs and comprehensive technical support, the TNY256Y is the smart choice for your next design.
All products are sourced from authorized distributors with full traceability and quality assurance. Contact us for volume pricing, technical specifications, or application support.
Related Products & Resources
Explore our complete range of AC DC Converters, Offline Switchers for more power management solutions. Visit our homepage to browse our full catalog of semiconductor components, or check out our technical blog for application notes, design guides, and industry insights.
| Product attributes | Property Value |
| Manufacturer | Power Integrations |
| Product Series | TinySwitch® Plus |
| Packaging | | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Topology | Flyback |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | - |
| Duty Cycle | 66% |
| Frequency - Switching | 130kHz |
| Power (Watts) | 11 W |
| Fault Protection | Current Limiting, Over Temperature |
| Control Features | EN |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-220-7 Formed Leads, 5 Leads |
| Supplier Device Package | TO-220-7B |
TNY256Y.pdf
