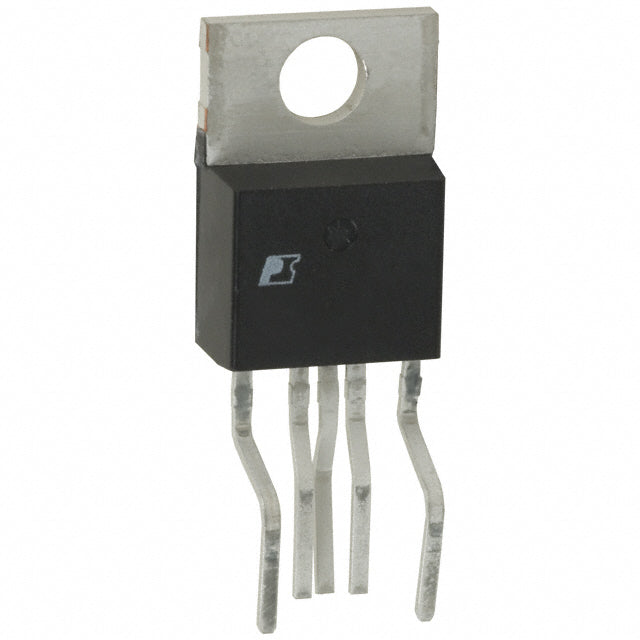

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
TNY256YN
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,892.34 AED | Dhs. 355,892.34 AED |
| 15+ | Dhs. 344,653.64 AED | Dhs. 5,169,804.60 AED |
| 25+ | Dhs. 337,161.17 AED | Dhs. 8,429,029.25 AED |
| 50+ | Dhs. 318,429.99 AED | Dhs. 15,921,499.50 AED |
| 100+ | Dhs. 280,967.64 AED | Dhs. 28,096,764.00 AED |
| N+ | Dhs. 56,193.53 AED | Price Inquiry |
Couldn't load pickup availability
TNY256YN - TinySwitch® Plus Offline Switcher IC
The TNY256YN from Power Integrations is a high-performance, isolated flyback switcher IC designed for cost-effective, space-saving AC-DC power conversion applications up to 11W. Part of the proven TinySwitch Plus family, this integrated solution combines a 700V power MOSFET, oscillator, high-voltage switched current source, current limit, and thermal shutdown circuitry on a single monolithic device.
Key Features & Benefits
- Integrated 700V Power MOSFET - Reduces component count and board space
- 11W Output Power - Ideal for low-power consumer and industrial applications
- 130kHz Switching Frequency - Enables use of smaller transformers
- 66% Maximum Duty Cycle - Optimized for flyback topology efficiency
- Comprehensive Protection - Built-in current limiting and over-temperature shutdown
- Enable Pin (EN) - Allows remote on/off control
- Wide Operating Range - -40°C to 150°C junction temperature
- Through-Hole TO-220-7B Package - Easy assembly and excellent thermal performance
Typical Applications
- Cell phone chargers and adapters
- Standby power supplies
- Auxiliary power supplies
- Consumer electronics
- White goods appliances
- Industrial control systems
Why Choose TNY256YN?
The TNY256YN delivers exceptional reliability and performance for isolated AC-DC conversion with minimal external components. Its integrated protection features ensure safe operation across varying load conditions, while the compact TO-220-7B package provides excellent thermal management. Backed by Power Integrations' reputation for quality and long product lifecycles, the TNY256YN is the ideal choice for cost-sensitive, space-constrained power supply designs.
All specifications are subject to change without notice. Please refer to the official datasheet for complete technical details and application guidelines.
Related Products & Resources
Explore our complete range of AC DC Converters, Offline Switchers for more power conversion solutions. Visit our homepage to browse our full catalog of electronic components, or check out our blog for technical articles, application notes, and industry insights.
| Product attributes | Property Value |
| Manufacturer | Power Integrations |
| Product Series | TinySwitch® Plus |
| Packaging | | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Topology | Flyback |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | - |
| Duty Cycle | 66% |
| Frequency - Switching | 130kHz |
| Power (Watts) | 11 W |
| Fault Protection | Current Limiting, Over Temperature |
| Control Features | EN |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-220-7 Formed Leads, 5 Leads |
| Supplier Device Package | TO-220-7B |
TNY256YN.pdf
