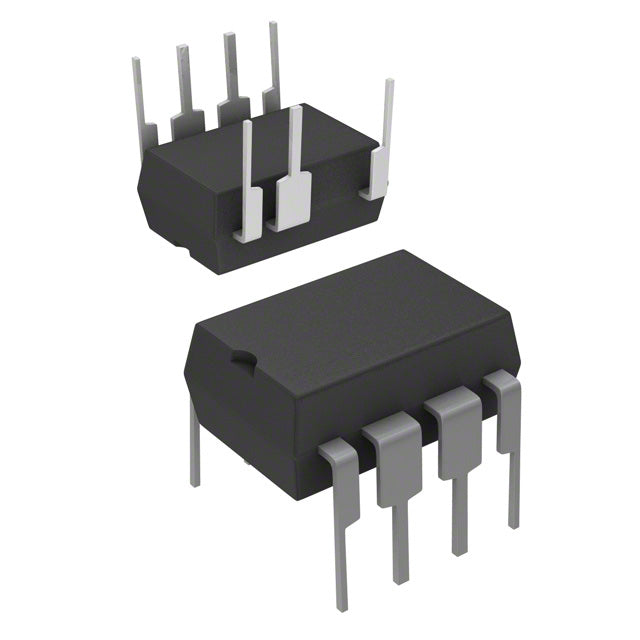

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
TNY264PN
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 3.41 AED | Dhs. 3.41 AED |
| 15+ | Dhs. 3.31 AED | Dhs. 49.65 AED |
| 25+ | Dhs. 3.24 AED | Dhs. 81.00 AED |
| 50+ | Dhs. 3.06 AED | Dhs. 153.00 AED |
| 100+ | Dhs. 2.70 AED | Dhs. 270.00 AED |
| N+ | Dhs. 0.54 AED | Price Inquiry |
Couldn't load pickup availability
TNY264PN - TinySwitch-II Offline Switching IC
The TNY264PN from Power Integrations is a high-performance offline switching IC in the TinySwitch-II family, designed for compact, cost-effective AC-DC power conversion applications up to 9W. This integrated switcher combines a 700V power MOSFET, oscillator, high-voltage switched current source, current limit, and thermal shutdown circuitry in a single 8-DIP package.
Key Features
- Integrated 700V Power MOSFET - High breakdown voltage for universal input applications
- 9W Output Power - Ideal for low-power consumer and industrial applications
- 132kHz Switching Frequency - Enables compact transformer design
- Flyback Topology - Proven, cost-effective isolated power supply architecture
- Comprehensive Protection - Current limiting, open loop, over-temperature, and short circuit protection
- Wide Operating Temperature Range - -40°C to 150°C (TJ) for demanding environments
- Through-Hole Mounting - Easy assembly and prototyping in 8-DIP package
Applications
- Cell phone chargers and adapters
- Standby power supplies
- Auxiliary power supplies
- Consumer electronics
- Industrial control systems
- Smart home devices
Design Support
Full technical documentation, reference designs, and application notes are available to support your design-in process. Our engineering team provides comprehensive technical support for power supply design optimization.
Quality & Compliance
RoHS compliant. Manufactured by Power Integrations with full traceability and quality assurance for aerospace, automotive, industrial, medical, and telecommunications applications.
| Product attributes | Property Value |
| Manufacturer | Power Integrations |
| Product Series | TinySwitch®-II |
| Packaging | Tube | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Topology | Flyback |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | - |
| Duty Cycle | 65% |
| Frequency - Switching | 132kHz |
| Power (Watts) | 9 W |
| Fault Protection | Current Limiting, Open Loop, Over Temperature, Short Circuit |
| Control Features | EN |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm), 7 Leads |
| Supplier Device Package | 8-PDIP-B |
| ROHS |  |
TNY264PN.pdf
