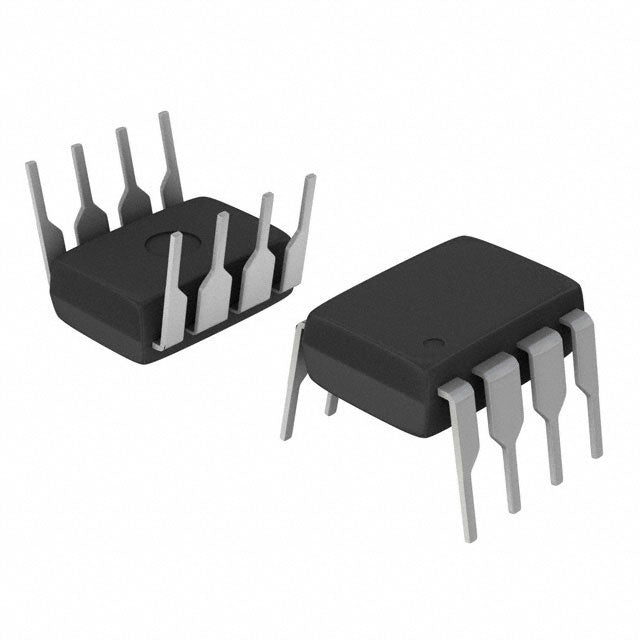

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
TOP209PN
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,892.34 AED | Dhs. 355,892.34 AED |
| 15+ | Dhs. 344,653.64 AED | Dhs. 5,169,804.60 AED |
| 25+ | Dhs. 337,161.17 AED | Dhs. 8,429,029.25 AED |
| 50+ | Dhs. 318,429.99 AED | Dhs. 15,921,499.50 AED |
| 100+ | Dhs. 280,967.64 AED | Dhs. 28,096,764.00 AED |
| N+ | Dhs. 56,193.53 AED | Price Inquiry |
Couldn't load pickup availability
TOP209PN - TOPSwitch® Offline Switcher IC
The TOP209PN from Power Integrations is a high-performance offline switcher IC featuring an integrated 700V power MOSFET. Designed for cost-effective, space-saving flyback power supply applications up to 2 watts, this device combines a high-voltage switching element with control circuitry and protection features in a single 8-pin DIP package.
Key Features & Benefits
- Integrated 700V Power MOSFET - Reduces component count and board space
- 2W Output Power - Ideal for low-power auxiliary supplies, standby power, and consumer applications
- 70kHz Switching Frequency - Enables use of smaller magnetic components
- Built-in Protection - Current limiting and over-temperature shutdown ensure reliable operation
- 67% Maximum Duty Cycle - Optimized for flyback topology efficiency
- Through-Hole 8-DIP Package - Easy prototyping and reliable manufacturing
- Wide Operating Temperature Range - -40°C to 150°C junction temperature for demanding environments
Applications
- Auxiliary power supplies
- Standby power for appliances
- Battery chargers
- Consumer electronics
- Industrial control systems
- Smart home devices
Why Choose TOP209PN?
The TOP209PN offers exceptional value for designers seeking a reliable, cost-effective solution for low-power offline power supplies. Its integrated design eliminates the need for external MOSFETs and complex control circuitry, reducing BOM costs and simplifying PCB layout. With comprehensive protection features and proven TOPSwitch technology from Power Integrations, the TOP209PN delivers robust performance for demanding applications.
Authorized distributor - Genuine Power Integrations components with full traceability and manufacturer warranty support.
Related Products & Resources
Explore our complete range of AC DC Converters and Offline Switchers for additional power management solutions. Visit HQICKEY to browse our full catalog of semiconductors and programmable logic components. For technical insights, application notes, and industry updates, check out our Technical Blog.
| Product attributes | Property Value |
| Manufacturer | Power Integrations |
| Product Series | TOPSwitch® |
| Packaging | | |
| Output Isolation | Non-Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Topology | Flyback |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | - |
| Duty Cycle | 67% |
| Frequency - Switching | 70kHz |
| Power (Watts) | 2 W |
| Fault Protection | Current Limiting, Over Temperature |
| Control Features | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-PDIP |
TOP209PN.pdf
