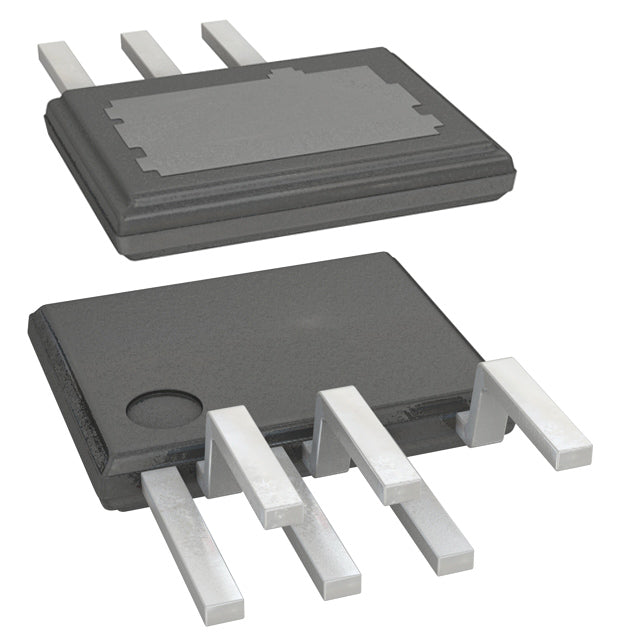

Power Integrations TOP252EG
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.93 | $0.93 |
| 15+ | $0.90 | $13.50 |
| 25+ | $0.88 | $22.00 |
| 50+ | $0.83 | $41.50 |
| 100+ | $0.74 | $74.00 |
| N+ | $0.15 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Power Integrations |
| Product Series | TOPSwitch®-HX |
| Packaging | Tube | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Topology | Flyback |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | - |
| Duty Cycle | 78% |
| Frequency - Switching | 66kHz, 132kHz |
| Power (Watts) | 21 W |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage |
| Control Features | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 7-SSIP, 6 Leads, Exposed Pad, Formed Leads |
| Supplier Device Package | eSIP-7C |
| ROHS |  |
The TOP252EG from Power Integrations is a TOPSwitch®-HX Flyback off-line switcher with an integrated power switch, rated for up to 21 W in isolated designs. It features a 700V breakdown rating, selectable 66kHz and 132kHz switching frequencies, and up to 78% duty cycle. Current limiting, over temperature, and over voltage protection ensure reliable operation. Housed in a 7-SSIP package with exposed pad and formed leads, it operates across a -40°C to 150°C junction temperature range.
- Integrated 700V switch reduces external component count for compact isolated Flyback designs.
- Selectable 66kHz/132kHz switching frequencies offer flexibility in transformer and EMI design trade-offs.
- Up to 78% duty cycle supports efficient power transfer up to 21 W.
- Current limiting, over temperature, and over voltage protection enhance system reliability.
- Wide -40°C to 150°C junction temperature range suits demanding thermal environments.
Isolated AC-DC Power Supplies
The TOP252EG is a TOPSwitch®-HX Flyback switcher with an integrated switch and 700V breakdown rating, delivering up to 21 W in isolated configurations. Selectable 66kHz/132kHz frequencies support flexible transformer design.
Industrial and Appliance Supplies
With a -40°C to 150°C junction temperature range and protection including current limiting, over temperature, and over voltage, this device suits robust isolated supplies in industrial and appliance applications.
Chargers and Adapters
Up to 78% duty cycle and dual switching frequencies enable compact isolated adapter designs. Integrated switch reduces external component count for cost-effective Flyback solutions.
Auxiliary and Bias Rails
The 7-SSIP package with exposed pad aids thermal management, making the TOP252EG well-suited for isolated bias and auxiliary rails requiring reliable operation up to 21 W.
- Q: What topology does the TOP252EG use?
- A: It is a Flyback off-line switcher for isolated power supplies.
- Q: Does it include an integrated switch?
- A: Yes, it integrates the power switch.
- Q: What is the breakdown voltage?
- A: The device is rated for 700V breakdown voltage.
- Q: What switching frequency and duty cycle does it support?
- A: It offers 66kHz and 132kHz switching frequencies with up to 78% duty cycle.
- Q: What power level and temperature range does it support?
- A: It delivers up to 21 W with a -40°C to 150°C junction temperature range.
