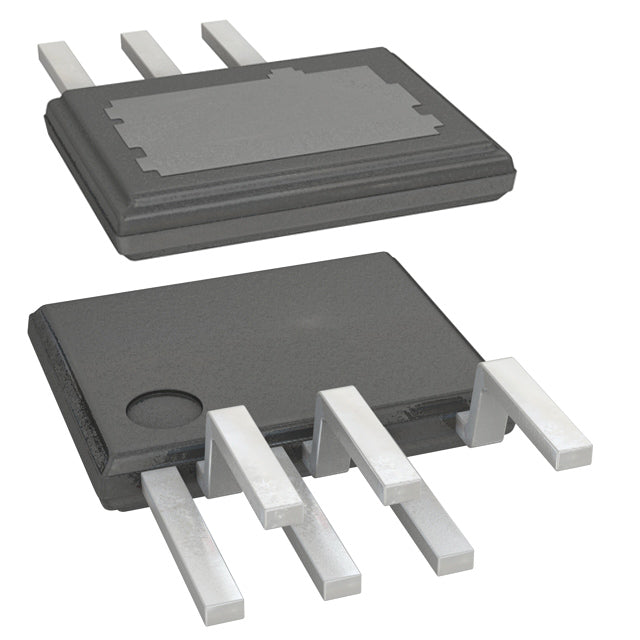

Power Integrations TOP256EN
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.69 | $1.69 |
| 15+ | $1.64 | $24.60 |
| 25+ | $1.60 | $40.00 |
| 50+ | $1.51 | $75.50 |
| 100+ | $1.34 | $134.00 |
| N+ | $0.27 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Power Integrations |
| Product Series | TOPSwitch®-HX |
| Packaging | Tube | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Topology | Flyback |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | - |
| Duty Cycle | 78% |
| Frequency - Switching | 66kHz, 132kHz |
| Power (Watts) | 119 W |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage |
| Control Features | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 7-SSIP, 6 Leads, Exposed Pad, Formed Leads |
| Supplier Device Package | eSIP-7C |
| ROHS |  |
The TOP256EN from Power Integrations is an offline Flyback switcher in the TOPSwitch®-HX series featuring an integrated 700V switch. It delivers up to 119 W with selectable 66kHz/132kHz switching and 78% maximum duty cycle. Protections include current limiting, over temperature, and over voltage. Packaged in a 7-SSIP with exposed pad, it operates from -40°C to 150°C junction temperature.
- Integrated 700V switch simplifies isolated Flyback designs and reduces external parts.
- Up to 119 W output supports medium-power offline applications.
- Selectable 66kHz/132kHz frequency enables efficiency and EMI tuning.
- Current limiting, over temperature, and over voltage protection enhance reliability.
- Wide -40°C to 150°C junction temperature range suits demanding environments.
Isolated AC-DC Adapters
The TOP256EN integrates a 700V switch and delivers up to 119 W in a Flyback topology, ideal for isolated offline adapters requiring over voltage and over temperature protection.
Industrial Power Supplies
A -40°C to 150°C junction temperature range supports reliable operation in industrial auxiliary supplies.
Consumer Appliances
Selectable 66kHz/132kHz switching helps balance efficiency and EMI in isolated Flyback designs for household electronics.
Networking Equipment
The integrated switch and 78% max duty cycle simplify isolated Flyback power stages for networking hardware.
- Q: What topology does the TOP256EN use?
- A: It is a Flyback offline switcher with galvanically isolated output from the TOPSwitch®-HX series.
- Q: What is the breakdown voltage?
- A: The integrated switch has a 700V breakdown (Vds) rating.
- Q: How much power does it deliver?
- A: Up to 119 W.
- Q: What switching frequency is available?
- A: Selectable 66kHz or 132kHz.
- Q: What protections are included?
- A: Current limiting, over temperature, and over voltage protection.
