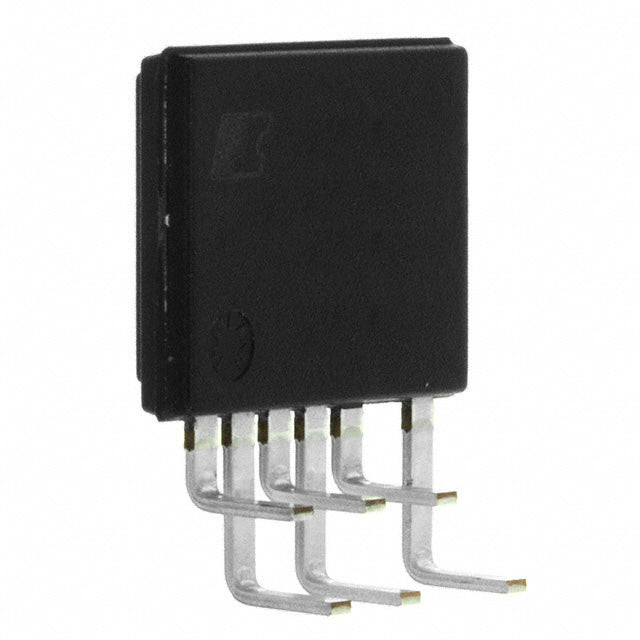

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
TOP256LN
Regular price
Dhs. 355,870.06
Regular price
Dhs. 374,600.06
Sale price
Dhs. 355,870.06
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,870.06 AED | Dhs. 355,870.06 AED |
| 15+ | Dhs. 344,632.06 AED | Dhs. 5,169,480.90 AED |
| 25+ | Dhs. 337,140.05 AED | Dhs. 8,428,501.25 AED |
| 50+ | Dhs. 318,410.05 AED | Dhs. 15,920,502.50 AED |
| 100+ | Dhs. 280,950.05 AED | Dhs. 28,095,005.00 AED |
| N+ | Dhs. 56,190.01 AED | Price Inquiry |
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Recycling Electronic Components
TOP256LN - TOPSwitch-HX Offline Switcher IC
The TOP256LN from Power Integrations is a high-performance 88W offline switcher IC featuring an integrated 700V power MOSFET. Part of the proven TOPSwitch-HX family, this eSIP-7F packaged device delivers reliable flyback topology operation for industrial, telecommunications, and power supply applications requiring robust performance and comprehensive fault protection.
Key Features & Benefits
- 88W Power Output - Ideal for mid-power AC-DC converters and adapters
- 700V Breakdown Voltage - Supports universal input voltage ranges (85-265VAC)
- Integrated Power MOSFET - Reduces component count and simplifies design
- Dual Switching Frequencies - 66kHz/132kHz operation for optimized efficiency
- 78% Maximum Duty Cycle - Enables compact transformer designs
- Comprehensive Protection - Current limiting, over-voltage, and over-temperature safeguards
- Wide Operating Range - -40°C to 150°C junction temperature
- Through-Hole Mounting - eSIP-7F package for reliable PCB assembly
Typical Applications
- AC-DC power supplies and adapters (up to 88W)
- Industrial control and automation systems
- Telecommunications equipment power modules
- Consumer electronics and appliances
- LED lighting drivers
- Auxiliary power supplies
Why Choose Authorized Distribution?
When you source the TOP256LN through our authorized channel, you receive:
- ✓ 100% genuine Power Integrations components with full traceability
- ✓ Manufacturer warranty and technical support access
- ✓ Complete documentation including datasheets and reference designs
- ✓ Long lifecycle availability to support your production programs
- ✓ Design-in assistance and application engineering resources
All specifications subject to manufacturer's published datasheet. Contact us for volume pricing, lead times, and technical support.
| Product attributes | Property Value |
| Manufacturer | Power Integrations |
| Product Series | TOPSwitch®-HX |
| Packaging | | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Topology | Flyback |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | - |
| Duty Cycle | 78% |
| Frequency - Switching | 66kHz, 132kHz |
| Power (Watts) | 88 W |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage |
| Control Features | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 7-SSIP, 6 Leads, Exposed Pad, Formed Leads |
| Supplier Device Package | eSIP-7F |
| ROHS |  |
TOP256LN.pdf
×
