3PEAK TPB4056A20-ES1R
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 3.52 | Dhs. 3.52 |
| 15+ | Dhs. 3.41 | Dhs. 51.15 |
| 25+ | Dhs. 3.34 | Dhs. 83.50 |
| 50+ | Dhs. 3.15 | Dhs. 157.50 |
| 100+ | Dhs. 2.78 | Dhs. 278.00 |
| N+ | Dhs. 0.56 | Price Inquiry |
Request Quote / Inquiry
TPB4056A20-ES1R - Lithium Ion/Polymer Battery Charger IC
The TPB4056A20-ES1R from 3PEAK is a high-performance battery management IC designed for single-cell lithium-ion and lithium-polymer battery charging applications. This advanced charger IC features programmable current and voltage settings, making it ideal for portable electronics, power banks, and embedded systems requiring reliable battery charging solutions.
Key Features
- Single-Cell Charging: Optimized for 1-cell lithium-ion/polymer batteries with 4.2V output
- High Charge Current: Supports up to 1A maximum charging current with programmable control
- Wide Input Range: Operates with supply voltage up to 26.5V
- Comprehensive Protection: Built-in over-current, over-temperature, and over-voltage fault protection
- Industrial Grade: Operating temperature range from -40°C to 85°C

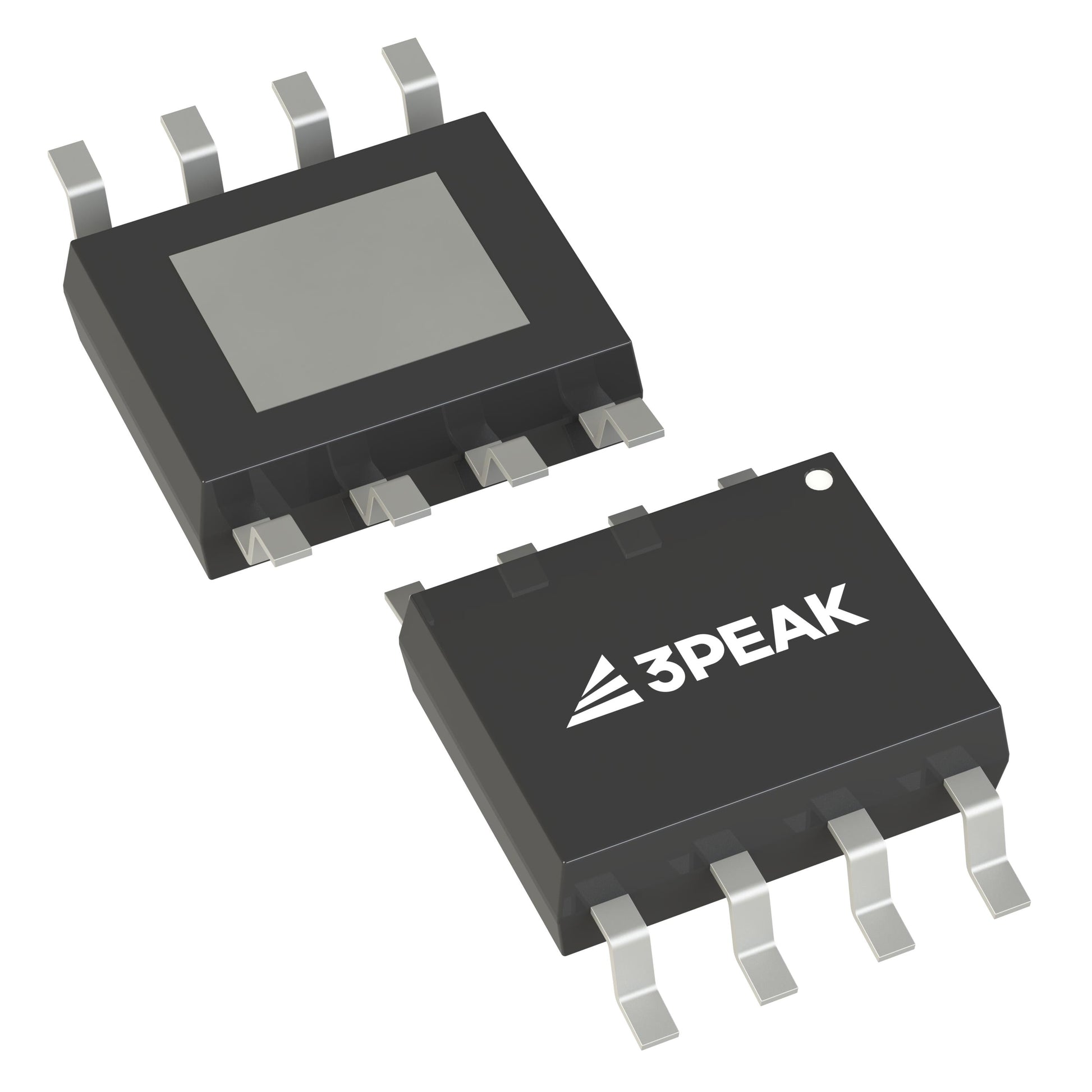

- Compact Package: 8-SOIC surface mount package with exposed pad for enhanced thermal performance
Applications
This battery charger IC is perfect for a wide range of applications including portable consumer electronics, wireless devices, IoT sensors, medical devices, and industrial equipment requiring single-cell lithium battery charging with advanced safety features.
Quality Assurance
All components from HQICKEY are 100% authentic and sourced directly from authorized distributors. Each TPB4056A20-ES1R comes with manufacturer warranty support and complete traceability documentation. We ship globally with reliable logistics partners to ensure your components arrive safely.
Related Products & Resources
Looking for more battery charging solutions? Browse our complete Battery Chargers Collection for a wide selection of power management ICs and charging solutions.
Visit our HQICKEY homepage to explore our full catalog of authentic semiconductor components including FPGAs, microcontrollers, and power management ICs.
Stay updated with the latest industry news, product releases, and technical insights on our News & Updates Blog.
| Product attributes | Property Value |
| Manufacturer | 3PEAK |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Battery Chemistry | Lithium Ion/Polymer |
| Number of Cells | 1 |
| Current - Charging | Constant - Programmable |
| Programmable Features | Current, Voltage |
| Fault Protection | Over Current, Over Temperature, Over Voltage |
| Charge Current - Max | 1A |
| Battery Pack Voltage | 4.2V |
| Voltage - Supply (Max) | 26.5V |
| Interface | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) Exposed Pad |
| Supplier Device Package | 8-ESOP |
| ROHS |  |
TPB4056A20-ES1R.pdf
