3PEAK TPB4056B2X-ES1R
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 3.75 | Dhs. 3.75 |
| 15+ | Dhs. 3.62 | Dhs. 54.30 |
| 25+ | Dhs. 3.54 | Dhs. 88.50 |
| 50+ | Dhs. 3.34 | Dhs. 167.00 |
| 100+ | Dhs. 2.95 | Dhs. 295.00 |
| N+ | Dhs. 0.59 | Price Inquiry |
Request Quote / Inquiry

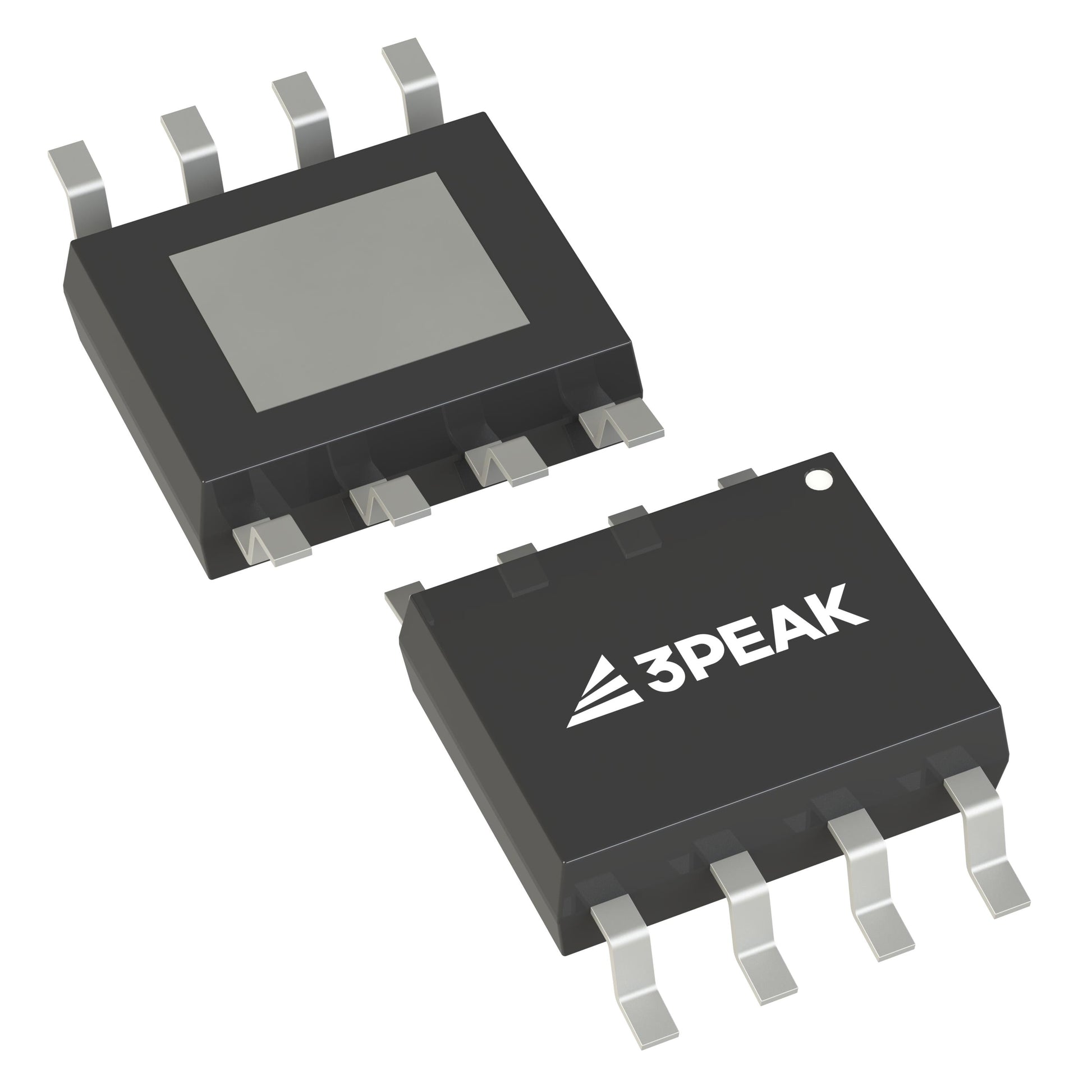

TPB4056B2X-ES1R - Single Cell Lithium Battery Charger IC
The TPB4056B2X-ES1R from 3PEAK is a high-performance linear battery charger IC designed specifically for single-cell lithium-ion and lithium-polymer battery applications. This advanced charging solution delivers up to 1A of programmable charging current with precision voltage regulation at 4.2V, making it ideal for portable electronics, power banks, and embedded battery-powered systems.
Key Features & Benefits
- Programmable Charging: Customize both current and voltage parameters to match your specific battery requirements
- Comprehensive Protection: Built-in safeguards against over-current, over-temperature, over/under-voltage, reverse battery connection, and short circuits ensure safe and reliable operation
- Wide Operating Range: Functions reliably from -40°C to 85°C, suitable for industrial and automotive applications
- Compact Surface Mount Design: 8-ESOP package with exposed pad for enhanced thermal performance
- High Input Voltage Tolerance: Accepts supply voltages up to 9.8V for flexible power source options
Applications
This battery charger IC is perfect for a wide range of applications including smartphones, tablets, portable medical devices, wireless sensors, IoT devices, and any single-cell lithium battery-powered equipment requiring reliable and safe charging.
Quality & Authenticity
All components from HQICKEY come with authentic manufacturer warranties and are sourced directly from authorized distributors. We guarantee 100% genuine parts with full traceability and compliance documentation.
Related Products & Resources
Looking for more battery management solutions? Explore our complete Battery Chargers collection featuring ICs from leading manufacturers.
For the latest semiconductor news, technical articles, and industry insights, visit our News Blog.
Shop with confidence at HQICKEY - your trusted source for authentic semiconductor components with global shipping and expert technical support.
| Product attributes | Property Value |
| Manufacturer | 3PEAK |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Battery Chemistry | Lithium Ion/Polymer |
| Number of Cells | 1 |
| Current - Charging | Constant - Programmable |
| Programmable Features | Current, Voltage |
| Fault Protection | Over Current, Over Temperature, Over-Under Voltage, Reverse Battery, Short Circuit |
| Charge Current - Max | 1A |
| Battery Pack Voltage | 4.2V |
| Voltage - Supply (Max) | 9.8V |
| Interface | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) Exposed Pad |
| Supplier Device Package | 8-ESOP |
| ROHS |  |
TPB4056B2X-ES1R.pdf
