3PEAK TPL6305AD-ES1R
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.65 | $2.65 |
| 15+ | $2.57 | $38.55 |
| 25+ | $2.51 | $62.75 |
| 50+ | $2.37 | $118.50 |
| 100+ | $2.09 | $209.00 |
| N+ | $0.42 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | 3PEAK |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6.5V |
| Voltage - Output (Min/Fixed) | Adjustable |
| Voltage - Output (Max) | 5.2V |
| Voltage Dropout (Max) | 0.3V @ 3A |
| Current - Output | 3A |
| Current - Quiescent (Iq) | - |
| Current - Supply (Max) | - |
| PSRR | 63dB (1kHz) |
| Control Features | Shutdown |
| Protection Features | Over Temperature |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

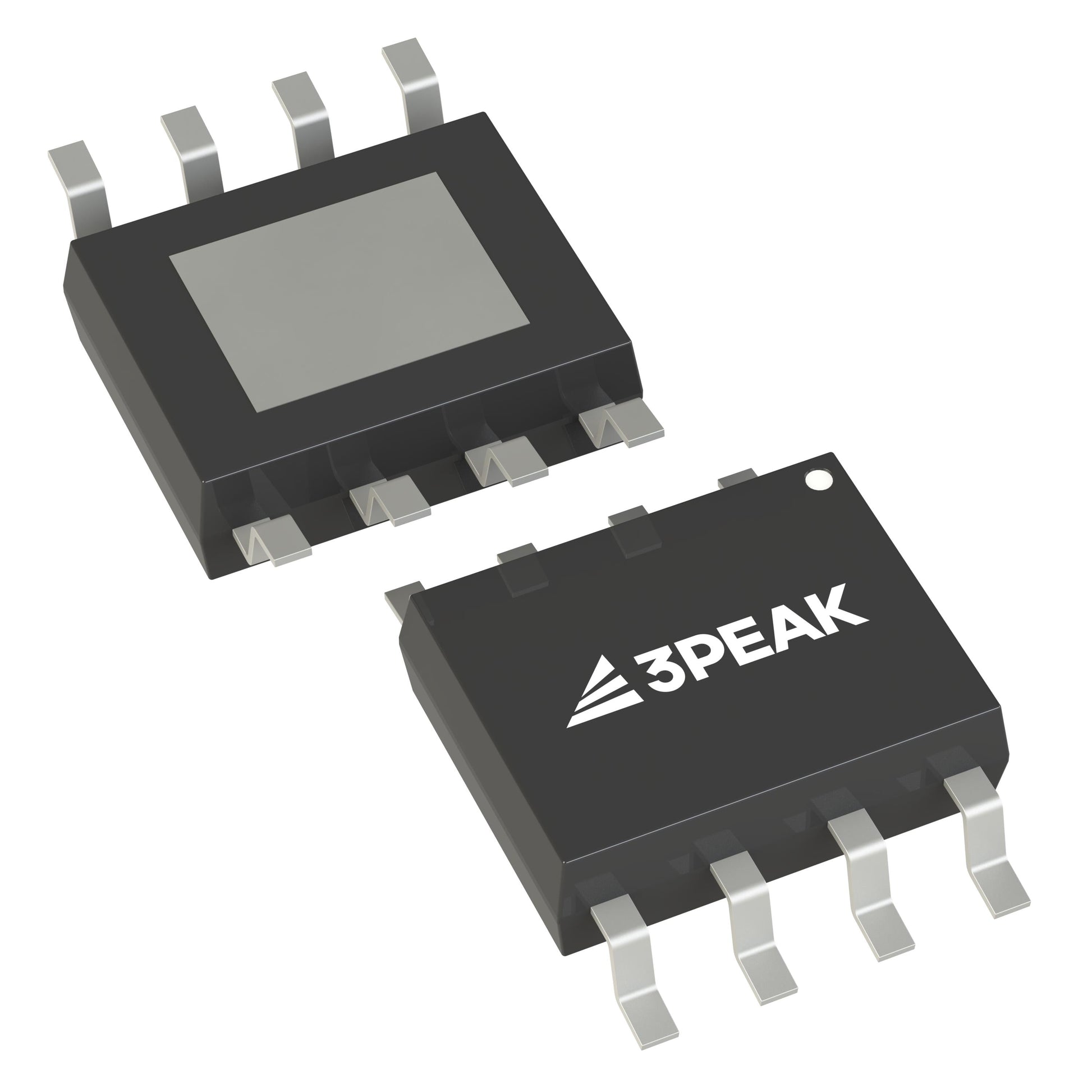

| Package / Case | 8-SOIC (0.154", 3.90mm Width) Exposed Pad |
| Supplier Device Package | 8-ESOP |
| ROHS |  |
The TPL6305AD-ES1R from 3PEAK is an adjustable output LDO linear regulator capable of delivering up to 3A of output current. With a typical output voltage of 5.2V and a low dropout voltage of 0.3V at full load, it ensures efficient power conversion for high-current applications. The device features a PSRR of 63dB at 1kHz, providing excellent noise rejection. Housed in an 8-ESOP package, this regulator is suitable for industrial, telecom, and automotive systems requiring robust, high-current regulation.
- High Output Current: 3A capability supports demanding loads such as FPGAs, processors, and audio amplifiers.
- Ultra-Low Dropout: 0.3V at 3A minimizes power loss and heat generation, improving overall system efficiency.
- Adjustable Output: Flexibility to set output voltage as needed, with 5.2V typical configuration.
- High PSRR: 63dB at 1kHz ensures clean power for noise-sensitive analog and RF circuits.
High-Current FPGA and ASIC Power
The TPL6305AD-ES1R delivers up to 3A with a low dropout of 0.3V, making it ideal for powering high-performance FPGAs, ASICs, and processors that require a stable 5.2V rail.
Server and Storage Systems
In data center equipment, this LDO provides clean, regulated power for memory modules, storage controllers, and high-speed interfaces, with 63dB PSRR at 1kHz to suppress switching noise.
Industrial Motor Drives
For industrial servo drives and robotics, the 3A output can power control electronics and gate drivers, ensuring reliable operation in noisy factory environments.
Telecom Base Stations
In wireless infrastructure, the TPL6305AD provides a stable 5.2V rail for RF transceivers and baseband processors, with low dropout to maintain regulation during load steps.
Automotive Infotainment
For high-power infotainment systems, this regulator powers audio amplifiers and display panels, delivering clean power with minimal heat dissipation.
- Q: What is the output voltage of the TPL6305AD-ES1R?
- A: The output voltage is adjustable, with a typical output of 5.2V as configured.
- Q: What is the maximum output current?
- A: This LDO can deliver up to 3A of output current.
- Q: What is the input voltage range?
- A: The input voltage is adjustable; please refer to the datasheet for the full operating range.
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.3V at 3A, ensuring high efficiency for high-current applications.
- Q: What is the PSRR?
- A: The PSRR is 63dB at 1kHz, providing good noise rejection for sensitive loads.
- Q: What package is available?
- A: This regulator is available in the 8-ESOP package.
